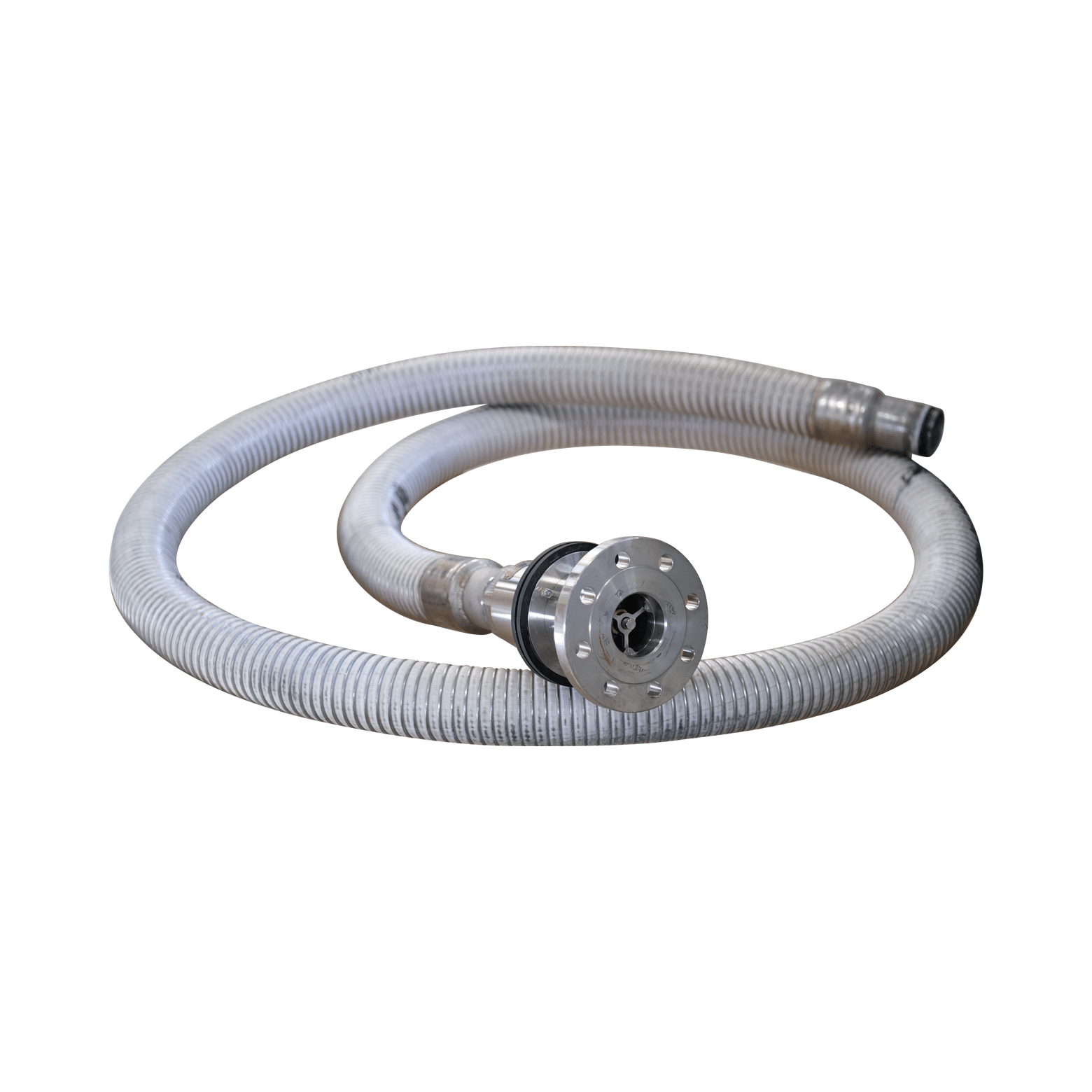

Composite hoses

  • Light weight units, easy handling (30% lighter than rubber hoses)
  • High resistance to tensile force and high pressure
  • Flexible design which compensates for misalignments and vibrations
  • Anti-static – double end-to-end continuity
  • Durable – resistant to wear and dragging with extremely secure end fittings
  • Fail-safe – multiple layered protective functionality to prevent leakage accidents

Composite hoses are used in gas (Propane/Butane) and liquid transfer systems where a combination of flexibility and strength is needed. They are frequently used in ship and barge onshore/offshore applications where misalignment of hose-ends is very common.

Inner wire:
Stainless steel 316
Lining:
Polyamide fabrics and BOPP films
Outer cover:
Polyamide
Outer wire:
Stainless steel 316
Gas types:
Cryogenics, LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread
Type:
ANSI, DIN, Fixed, NPT, Swivel
Pressure range:
Max. 25 bar (362.5 psi)
Maximum elongation:
10% on proof pressure
Electrical resistance:
>=2": 1.0 Ohm p/m, <2": 2.5 Ohm p/m
Maximum twist::
10˚ p/m
Min. burst pressure:
5x working pressure (safety fact 5:1)
Temperature range:
-50˚C to +50˚C (-58˚F to +122˚F)
Sizes and ranges:
1" to 12"
Series available:
Multi - LPG white
Standards:
EN 13766, IMO IGC code

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Inner wire:
Stainless steel 316
Lining:
Polyamide fabrics and BOPP films
Outer cover:
Polyamide
Outer wire:
Stainless steel 316
Gas types:
Cryogenics, LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread
Type:
ANSI, DIN, Fixed, NPT, Swivel
Pressure range:
Max. 25 bar (362.5 psi)
Maximum elongation:
10% on proof pressure
Electrical resistance:
>=2": 1.0 Ohm p/m, <2": 2.5 Ohm p/m
Maximum twist::
10˚ p/m
Min. burst pressure:
5x working pressure (safety fact 5:1)
Temperature range:
-50˚C to +50˚C (-58˚F to +122˚F)
Sizes and ranges:
1" to 12"
Series available:
Multi - LPG white
Standards:
EN 13766, IMO IGC code

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

Composite hoses are available for medium and heavy-duty applications with a max. length of 30 m.

The hoses are also suitable for: Butadiene, Butylene, Dimethylamide, Ethylamine, Ethyl Chloride, Methyl Acethylene, Methyl Bromide Propnae, Propadiene, Propylene, Vinyl Chloride and refrigerant gasses
