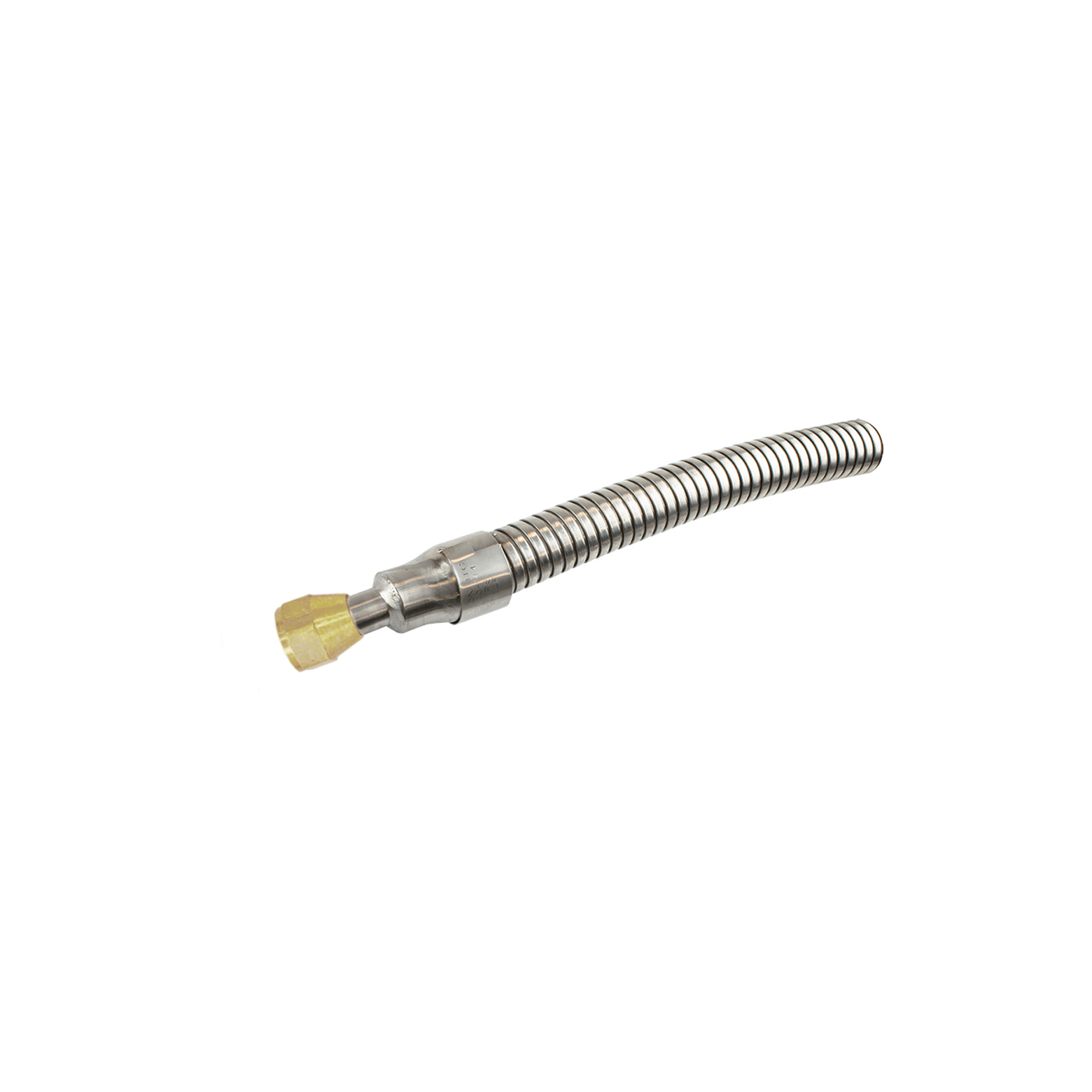

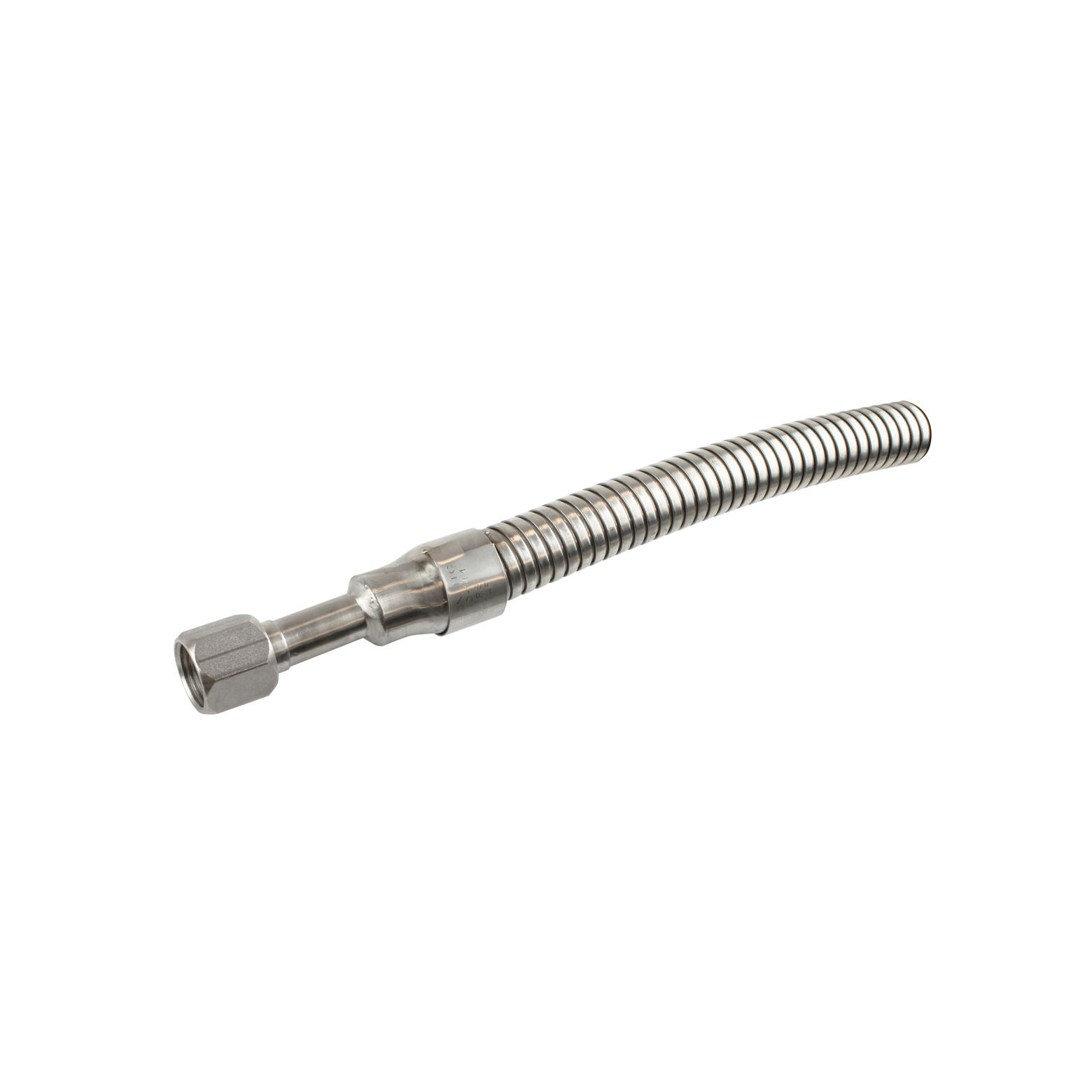

Cryogenic hoses

  • Armour cover protection
  • Serial number included
  • 100% pressure testedfe
  • High working pressure tolerance
  • Maximum flexibility
  • Safe and easy handling
  • Long service life

Cryogenic hoses in stainless steel are optimal for bulk transfers in LNG fuel dispensing systems.
The stainless steel construction with armouring ensures safe and secure handling during re-fuelling operations.

Core tube:
321/316 stainless steel
Exterior braid:
304 stainless steel
Armour:
304 stainless steel
Ferrule, flare, tube:
304L/316 stainless steel
Nut:
304L/316 stainless steel
Gas types:
LNG (Liquefied Natural Gas)
Connections:
Thread
Type:
45° SAE (CGA440)
Pressure range:
Max. 31 to 76 bar (450 to 1,000 psi)
Temperature range:
Down to -270° C (-454° F)
Sizes and range:
½" to 1"
Series available:
CHS series, LNG specific
Standards:
ATEX, ISO 12617, ISO 16924

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Core tube:
321/316 stainless steel
Exterior braid:
304 stainless steel
Armour:
304 stainless steel
Ferrule, flare, tube:
304L/316 stainless steel
Nut:
304L/316 stainless steel
Gas types:
LNG (Liquefied Natural Gas)
Connections:
Thread
Type:
45° SAE (CGA440)
Pressure range:
Max. 31 to 76 bar (450 to 1,000 psi)
Temperature range:
Down to -270° C (-454° F)
Sizes and range:
½" to 1"
Series available:
CHS series, LNG specific
Standards:
ATEX, ISO 12617, ISO 16924

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

These hoses are bespoke to LNG requirements.

MAKEEN Gas Equipment can provide multiple hose lengths for all dispenser requirements.
