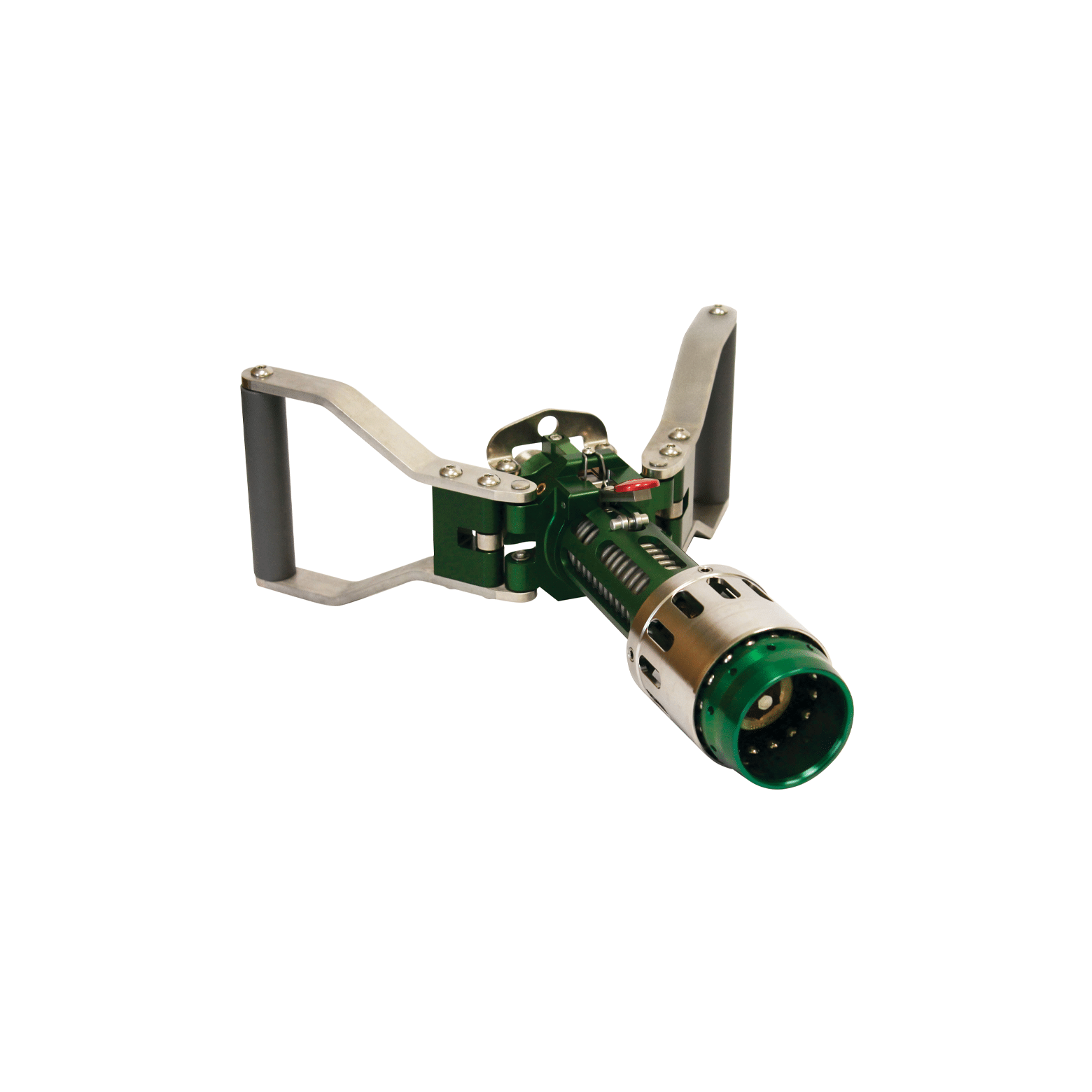

Filling guns

  • Reliable and economical
  • Automatic positive shut-off at disconnect
  • Easy to maintain
  • Freeze-up prevention
  • Light weight design for easy handling
  • Ball bearing ‘guide and lock’
  • Vent holes
  • KIWA tested by 3rd party
  • Improved service life
  • 100% pressure tested

The filling gun adjusts into 3 positions: ‘Connected’ and ready to fill, ‘Vent’ to release trapped gas and ‘Open’ to remove or connect the nozzle.

Seat:
UHMW
Poppet body:
Brass
Spring:
Seamless steel, Spring wire
Probe:
Stainless steel
Tube:
Stainless steel
Fitting:
Stainless steel
Housing:
Aluminium
Gas types:
LNG (Liquefied Natural Gas)
Connections:
Thread
Type:
SAE J514 (37° Flare JIC)
Refuelling pressure:
Up to 34 bar (500 psi)
Burst pressure:
Greater than 103.5 bar (1,500 psi)
Temperature range:
-195° C to +60° C (-320° F to +140° F)
Sizes and range:
1"
Series available:
CryoMac 3, LNG specific
Standards:
ATEX, CE, ISO 12617, ISO 16924

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Seat:
UHMW
Poppet body:
Brass
Spring:
Seamless steel, Spring wire
Probe:
Stainless steel
Tube:
Stainless steel
Fitting:
Stainless steel
Housing:
Aluminium
Gas types:
LNG (Liquefied Natural Gas)
Connections:
Thread
Type:
SAE J514 (37° Flare JIC)
Refuelling pressure:
Up to 34 bar (500 psi)
Burst pressure:
Greater than 103.5 bar (1,500 psi)
Temperature range:
-195° C to +60° C (-320° F to +140° F)
Sizes and range:
1"
Series available:
CryoMac 3, LNG specific
Standards:
ATEX, CE, ISO 12617, ISO 16924

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

Factory authorized CryoMac® 3 exchange service is available upon request.

A safe stop lever prevents nozzle from being removed unintentionally as the lever must be pushed down before moving handles into ‘open’ position.
