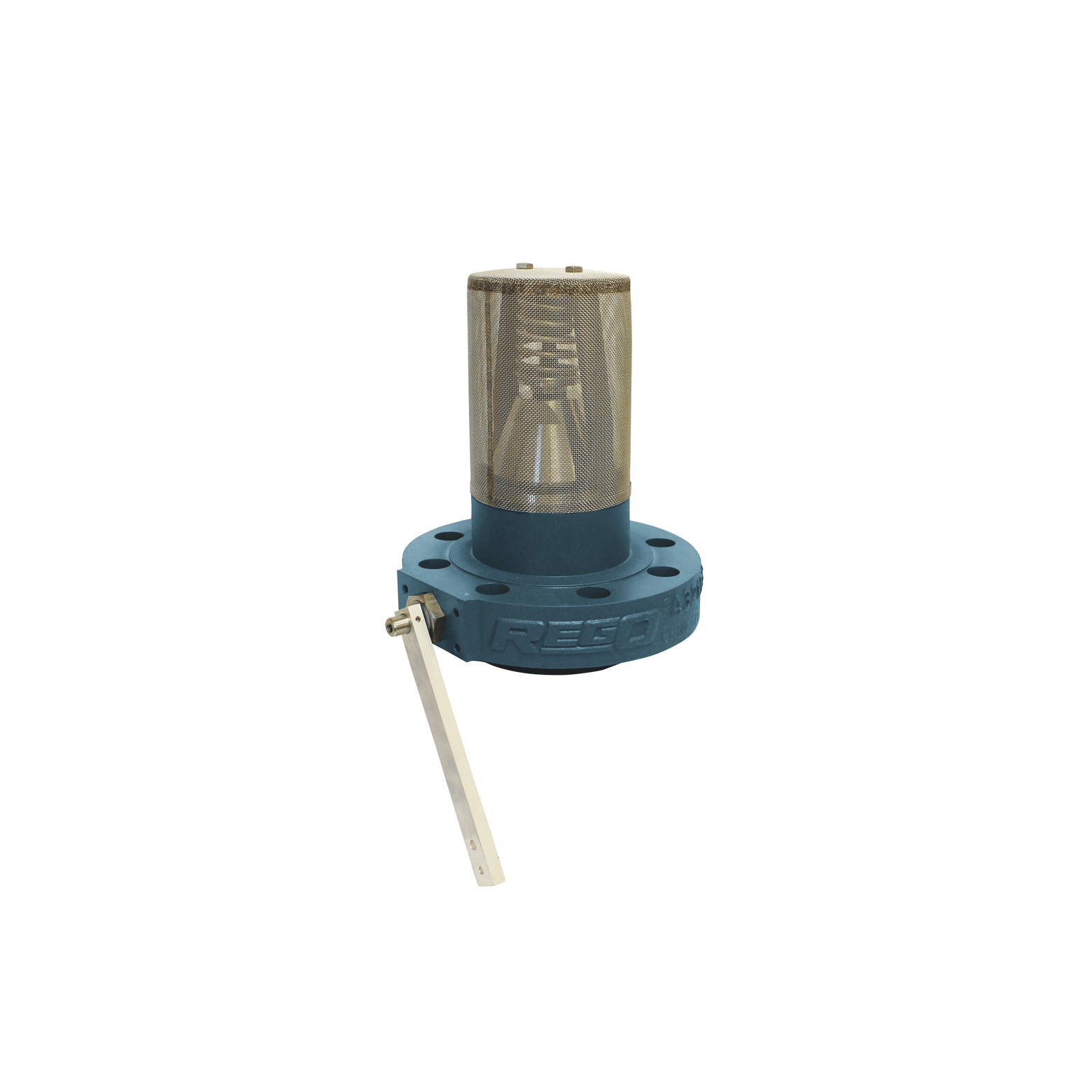

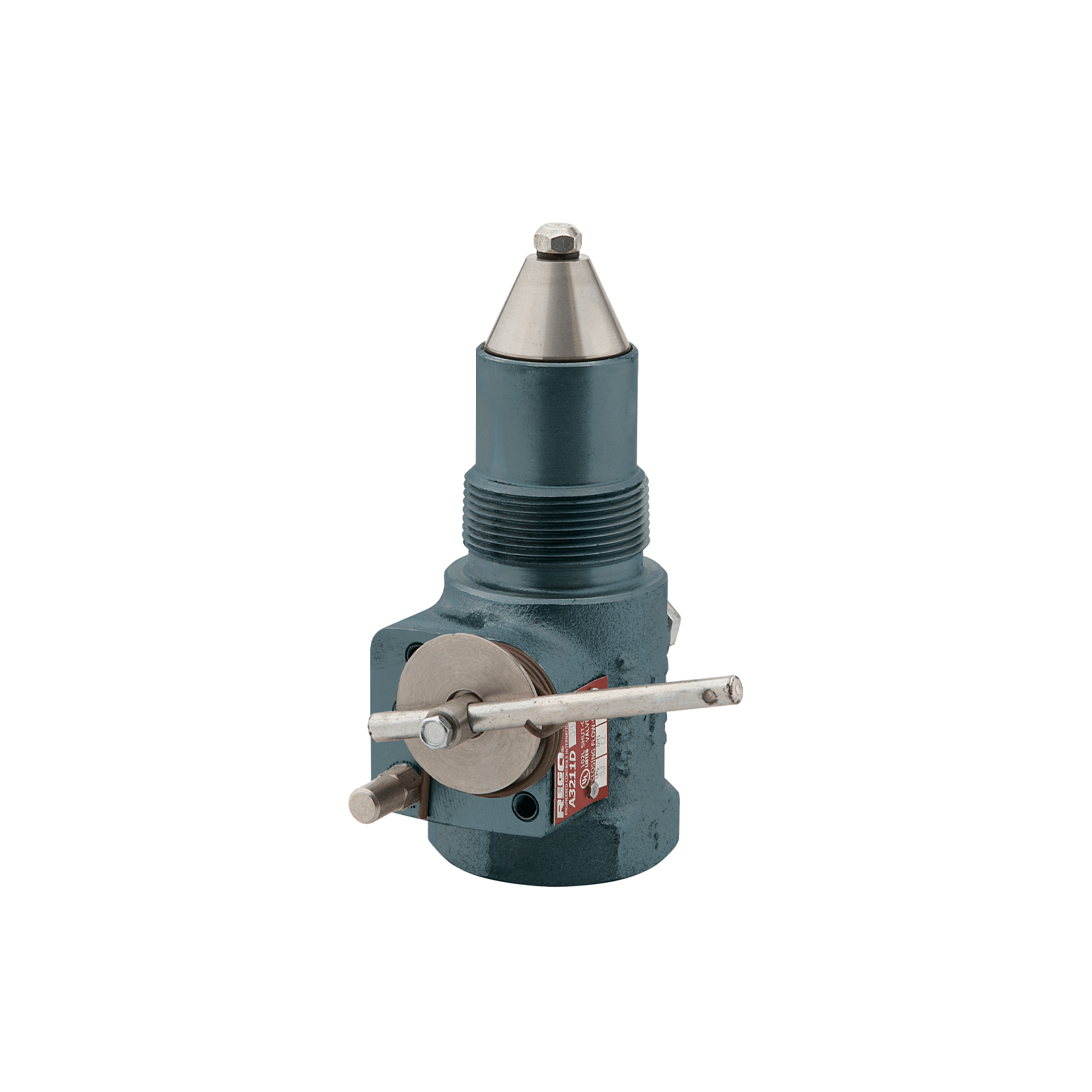

Internal valves (flanged)

  • Built-in excess flow valve and ball valve
  • Maximum flow provider
  • Gas tight seal
  • Easy and quick installation

The combined inner functionality of an excess flow valve and a ball valve provides a dual security for shutting off the flow in case of emergency – either manually by use of the lever or automatically if pressure changes dramatically.

Body and valve cage:
Cadmium plated ductile iron
Seat:
Nickel chrome plated steel
Strainer:
Stainless steel
Shaft:
Stainless steel
Pilot valve stem:
Stainless steel
Spring:
Stainless steel
Actuator-cam:
Stainless steel
Level:
Cadmium plated carbon steel
Seat disc:
Resilient synthetic rubber
Gas types:
CO2
Connections:
RF modified flange (inlet), RF flange (outlet)
Types:
ANSI #300
Pressure range:
Max. 27.5 bar (400 psi)
Flow rate:
Up to 567.8 lpm (150 gpm)
Temperature range:
-40˚C to +74˚C (-40˚F to +165.2˚F)
Sizes and range:
3"
Series available:
TA3217, TA3217DA
Standards:
ASME, CRN, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Body and valve cage:
Cadmium plated ductile iron
Seat:
Nickel chrome plated steel
Strainer:
Stainless steel
Shaft:
Stainless steel
Pilot valve stem:
Stainless steel
Spring:
Stainless steel
Actuator-cam:
Stainless steel
Level:
Cadmium plated carbon steel
Seat disc:
Resilient synthetic rubber
Gas types:
CO2
Connections:
RF modified flange (inlet), RF flange (outlet)
Types:
ANSI #300
Pressure range:
Max. 27.5 bar (400 psi)
Flow rate:
Up to 567.8 lpm (150 gpm)
Temperature range:
-40˚C to +74˚C (-40˚F to +165.2˚F)
Sizes and range:
3"
Series available:
TA3217, TA3217DA
Standards:
ASME, CRN, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

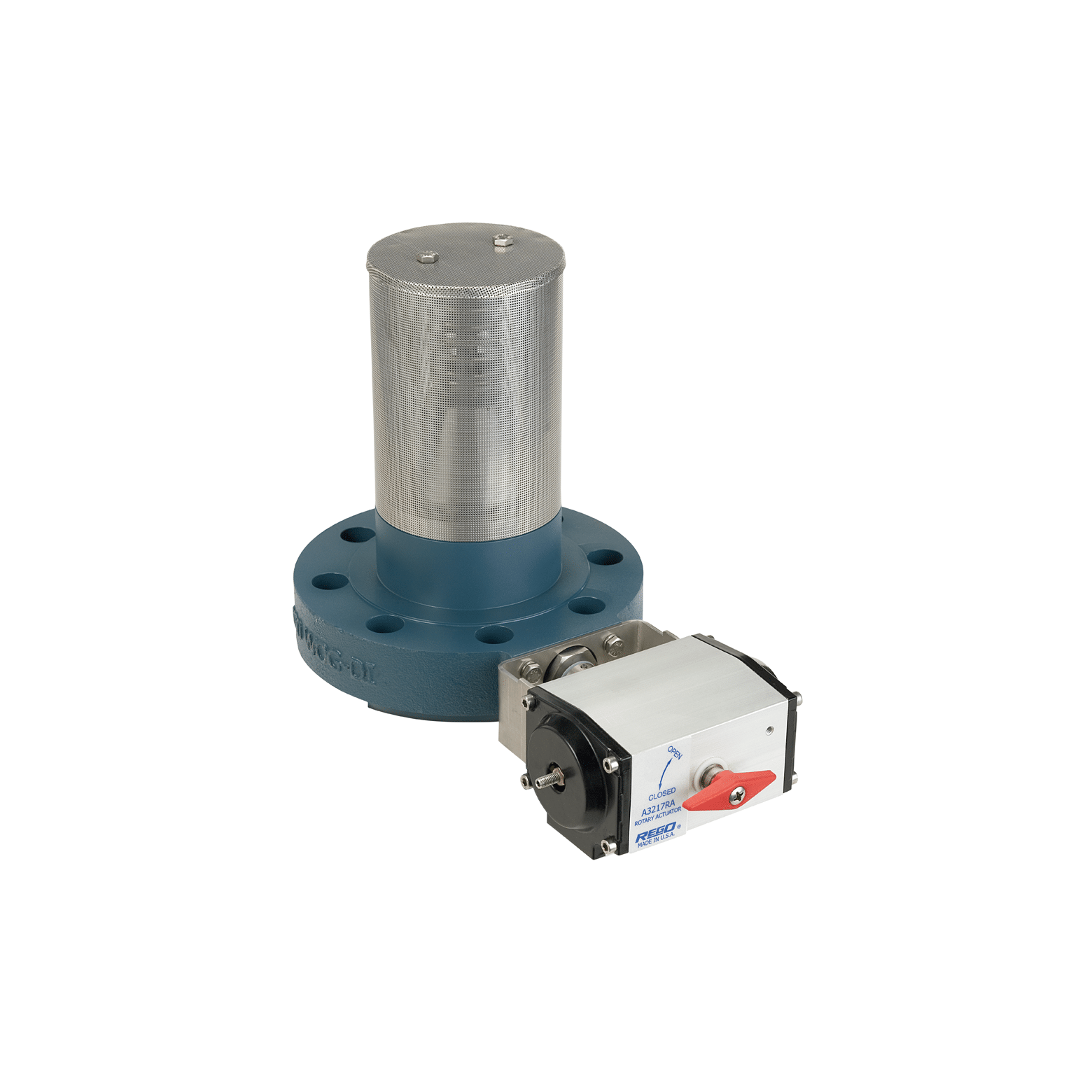

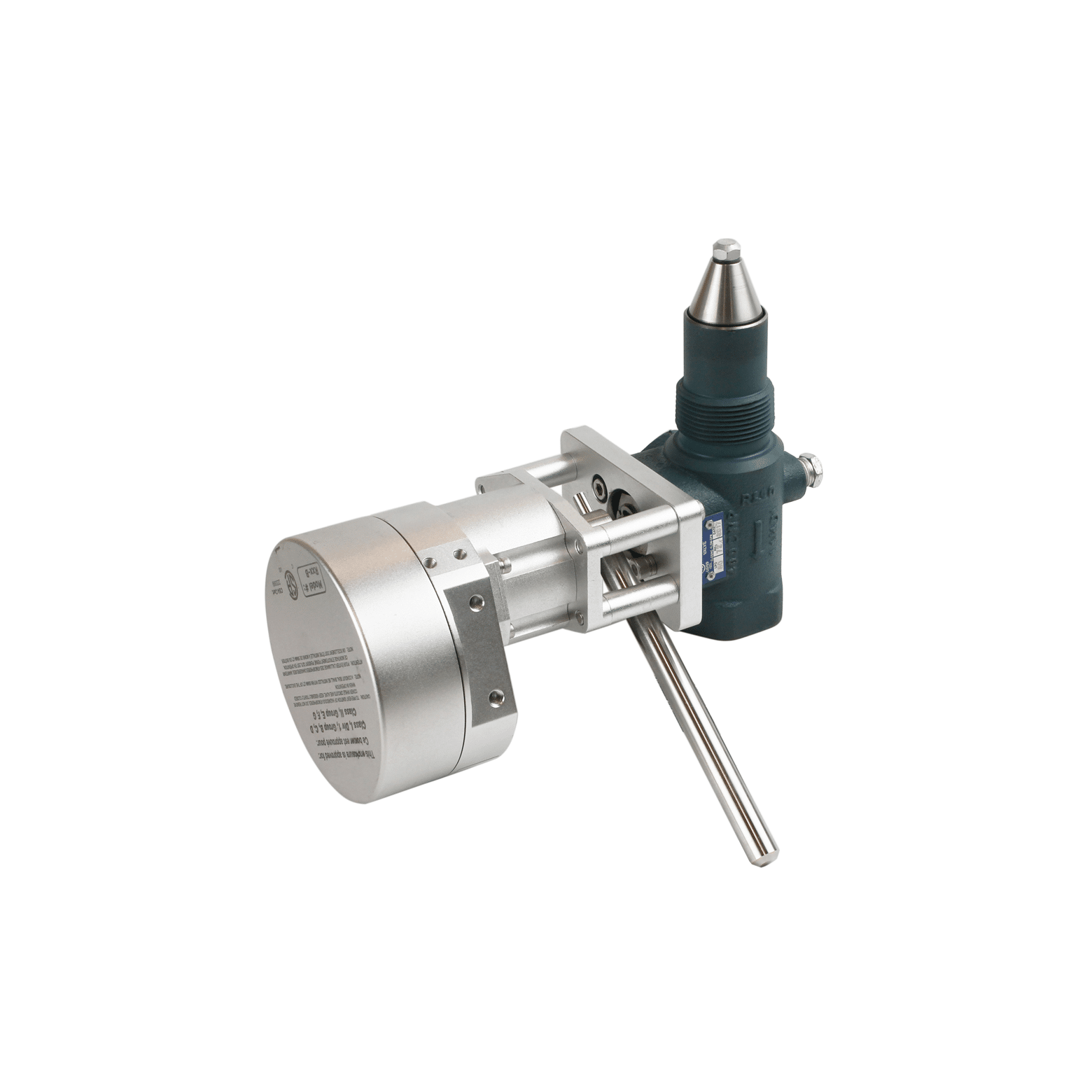

Available in right or left manual operation and can also be pneumatically or cable operated.
