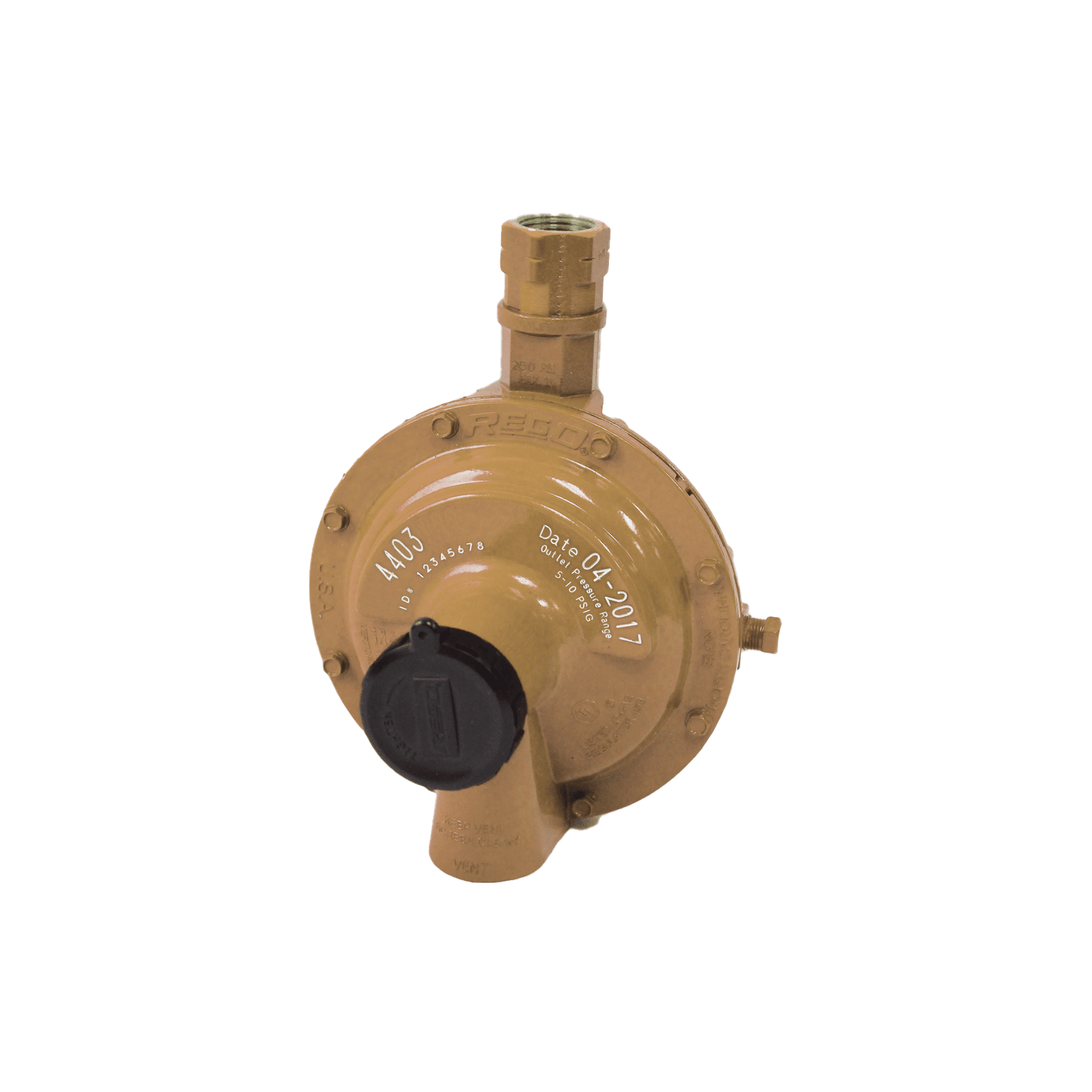

Low pressure line regulators

  • Corrosion proof
  • High sensitivity and accurate low-pressure control
  • Long service life
  • Integrated relief valve
  • Tamper proof by concealed adjusting screw

Low-pressure in-line regulators of this type are used as first stage regulators in a two stage system. Their temperature tolerance limits them to use with vapours only.

Body:
Zinc
Bonnet:
Zinc
Diaphragm:
4403W, S4, T4, T4403J, U4 teflon faced Buna N
(4403WP4)::
Buna N
(LV4403C):
Buna N
Spring:
Steel
Seat (T4403J):
PTFE
Nozzle (T4403J):
Stainless steel
(4403W, LV4403C):
Brass, Buna N
Gas types:
Argon, CO2, Hydrogen, LNG (Liquefied Natural Gas), NG (Natural Gas), Nitrogen, Oxygen
Connections:
Thread
Type:
NPT
Pressure range:
Max. 70 to 690 mbar (1 to 10 psi)
Temperature range:
-40˚C to +74˚C (-40˚F to +165˚F)
Sizes and range:
¼" to ½"
Series available:
4403 Series
Standards:
ASME, CRN, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Body:
Zinc
Bonnet:
Zinc
Diaphragm:
4403W, S4, T4, T4403J, U4 teflon faced Buna N
(4403WP4)::
Buna N
(LV4403C):
Buna N
Spring:
Steel
Seat (T4403J):
PTFE
Nozzle (T4403J):
Stainless steel
(4403W, LV4403C):
Brass, Buna N
Gas types:
Argon, CO2, Hydrogen, LNG (Liquefied Natural Gas), NG (Natural Gas), Nitrogen, Oxygen
Connections:
Thread
Type:
NPT
Pressure range:
Max. 70 to 690 mbar (1 to 10 psi)
Temperature range:
-40˚C to +74˚C (-40˚F to +165˚F)
Sizes and range:
¼" to ½"
Series available:
4403 Series
Standards:
ASME, CRN, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

This type of regulator is not suitable for oxygen applications.

Pressure gauge adapter available part # 1494-1.
