Metering

  • Highest process safety – immune to fluctuating and harsh environments
  • Fewer process measuring points – multivariable measurement (flow, density, temperature)
  • Space-saving installation – no in-/outlet run needs
  • Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses
  • Integrated verification – Heartbeat Technology
  • Mass flow accuracy of 0.10% (liquid) and 0.25% (gas)
  • Maintenance free design
  • Low pressure drop

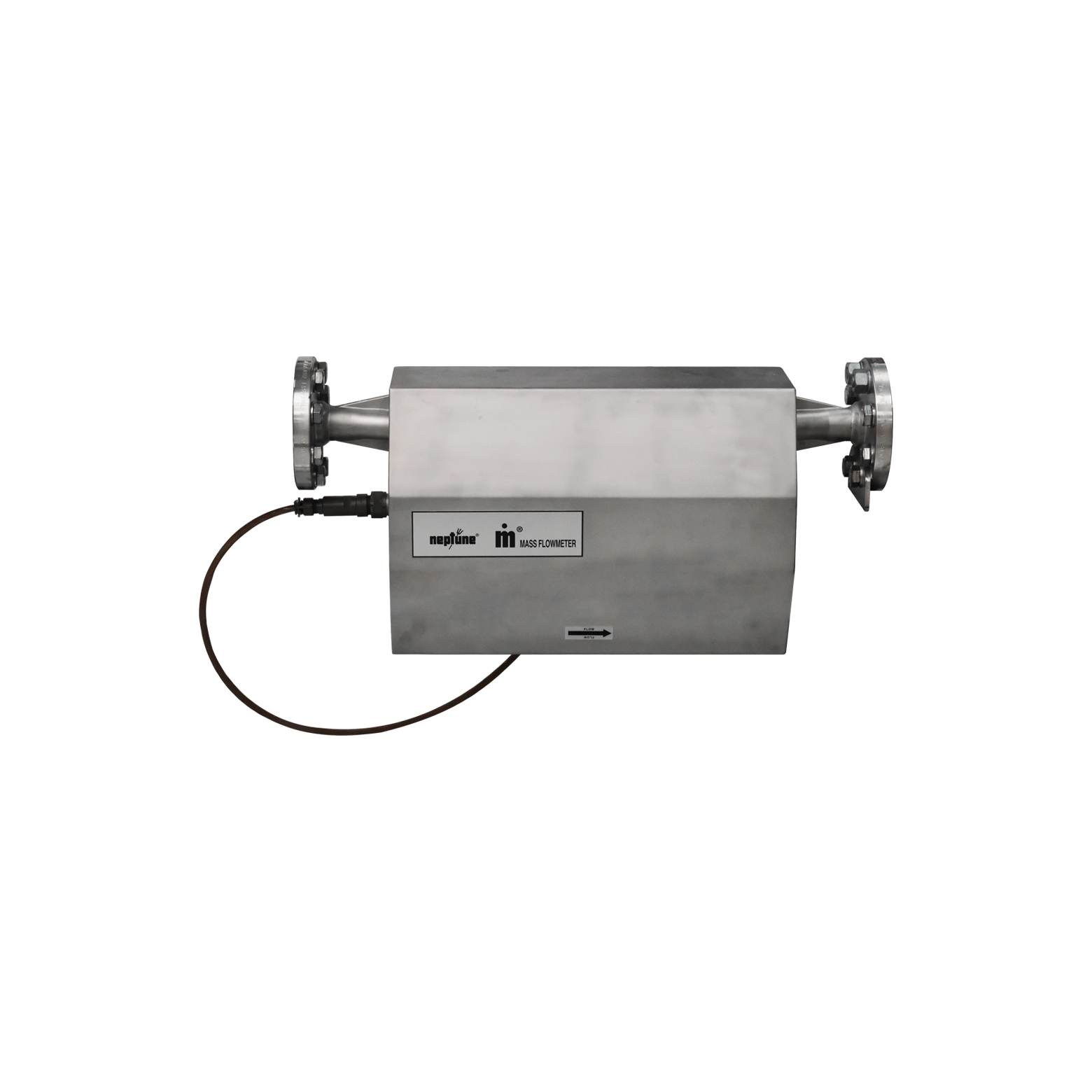

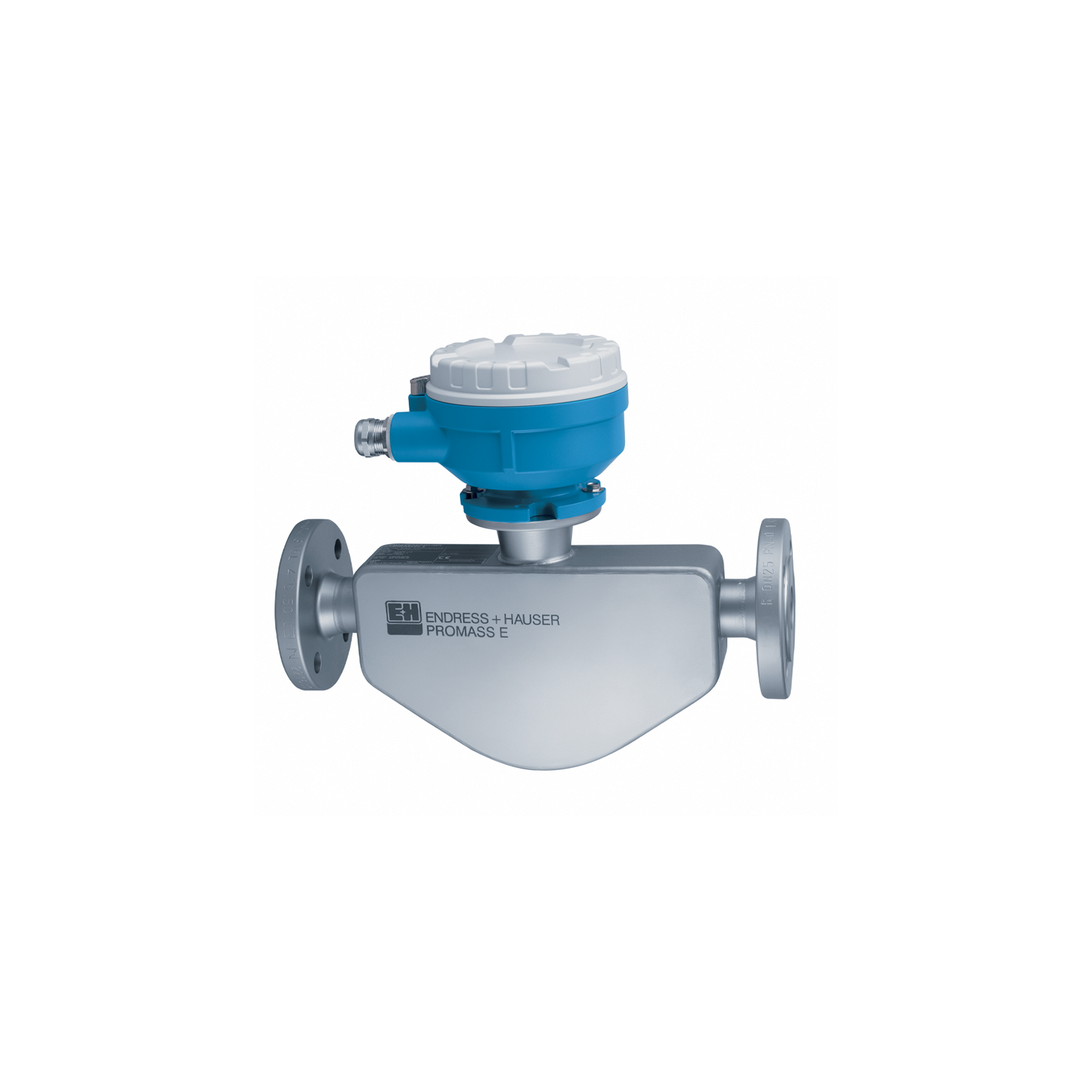

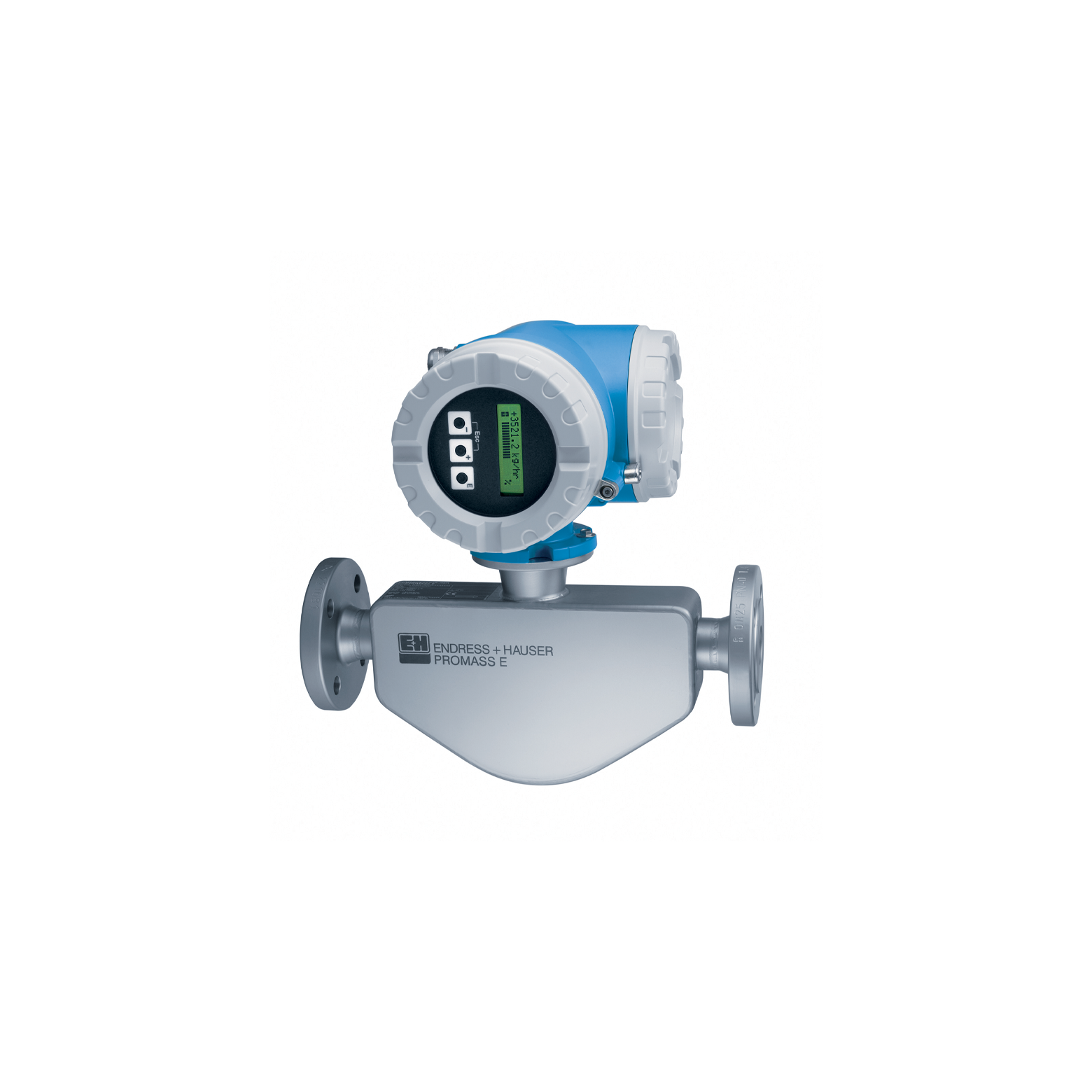

Coriolis flow meters are extremely accurate and flexible mass-measuring meters that eliminate any inaccuracies caused by fluid properties, no matter how varying or demanding the process conditions may be. Oftentimes they are found in truck deliveries and plant and terminal loading and unloading applications.

All parts are LPG and NH3 compatible.:
More information can be provided upon request
Gas types:
CNG, Cryogenics, LNG (Liquefied Natural Gas), LPG (Propane, Butane), NG (Natural Gas), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread
Type:
ANSI, DIN, NPT
Pressure range:
100 bar (1450 psi)
Flow rate:
0-2,000,000 kg/H
Temperature range:
-50° C to +150° C (-58° F to 302° F)
Sizes and range:
½" to 10" (connection), ⅜" to 10" (meter tube)
Series available:
m012, m025, m050, m100, m200, m300, m400, Promass F 300 Coriolis flowmeter series
Standards:
AD 2000, CE-ATEX, CE-PED, CRN, IECEx, MID

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

All parts are LPG and NH3 compatible.:
More information can be provided upon request
Gas types:
CNG, Cryogenics, LNG (Liquefied Natural Gas), LPG (Propane, Butane), NG (Natural Gas), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread
Type:
ANSI, DIN, NPT
Pressure range:
100 bar (1450 psi)
Flow rate:
0-2,000,000 kg/H
Temperature range:
-50° C to +150° C (-58° F to 302° F)
Sizes and range:
½" to 10" (connection), ⅜" to 10" (meter tube)
Series available:
m012, m025, m050, m100, m200, m300, m400, Promass F 300 Coriolis flowmeter series
Standards:
AD 2000, CE-ATEX, CE-PED, CRN, IECEx, MID

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

MAKEEN Gas Equipment can provide a complete package of metering systems that can include an automated pre-set delivery (batching system).

Depending on the temperature requirements, other models are available with additional features.

The meters are also compatible with: Industrial gasses, Oxygen, Nitrogen, CO2, DME, Diesel, gasoline, Hydrogen, Biogas, BioLPG and Kerosene.

Meters are available with a selection of bolt-on strainers and air/vapor eliminators for inlet side and a selection of manual or solenoid actuated differential pressure control valves for the meter outlet.

Electronic registration equipment and printers are available upon request.
