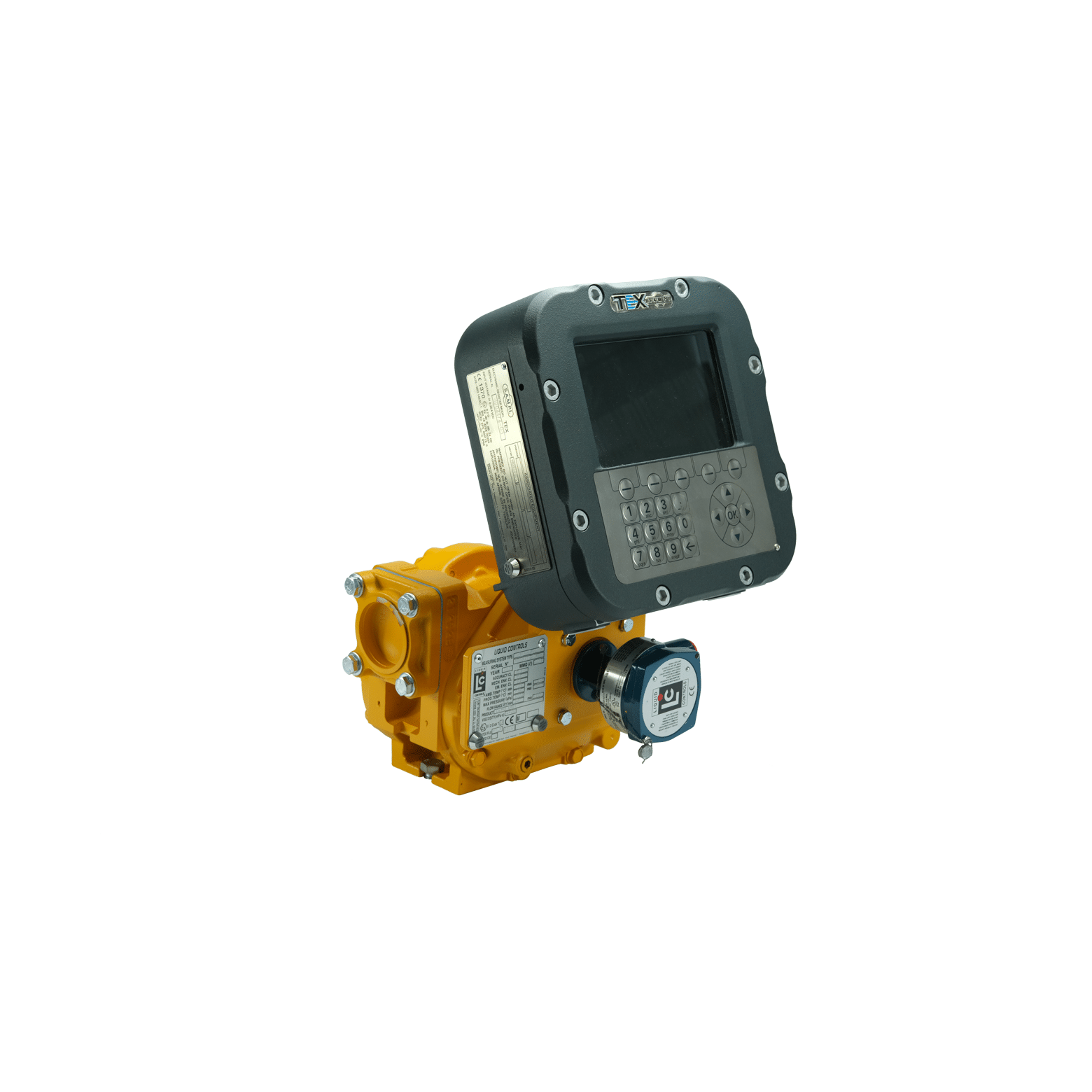

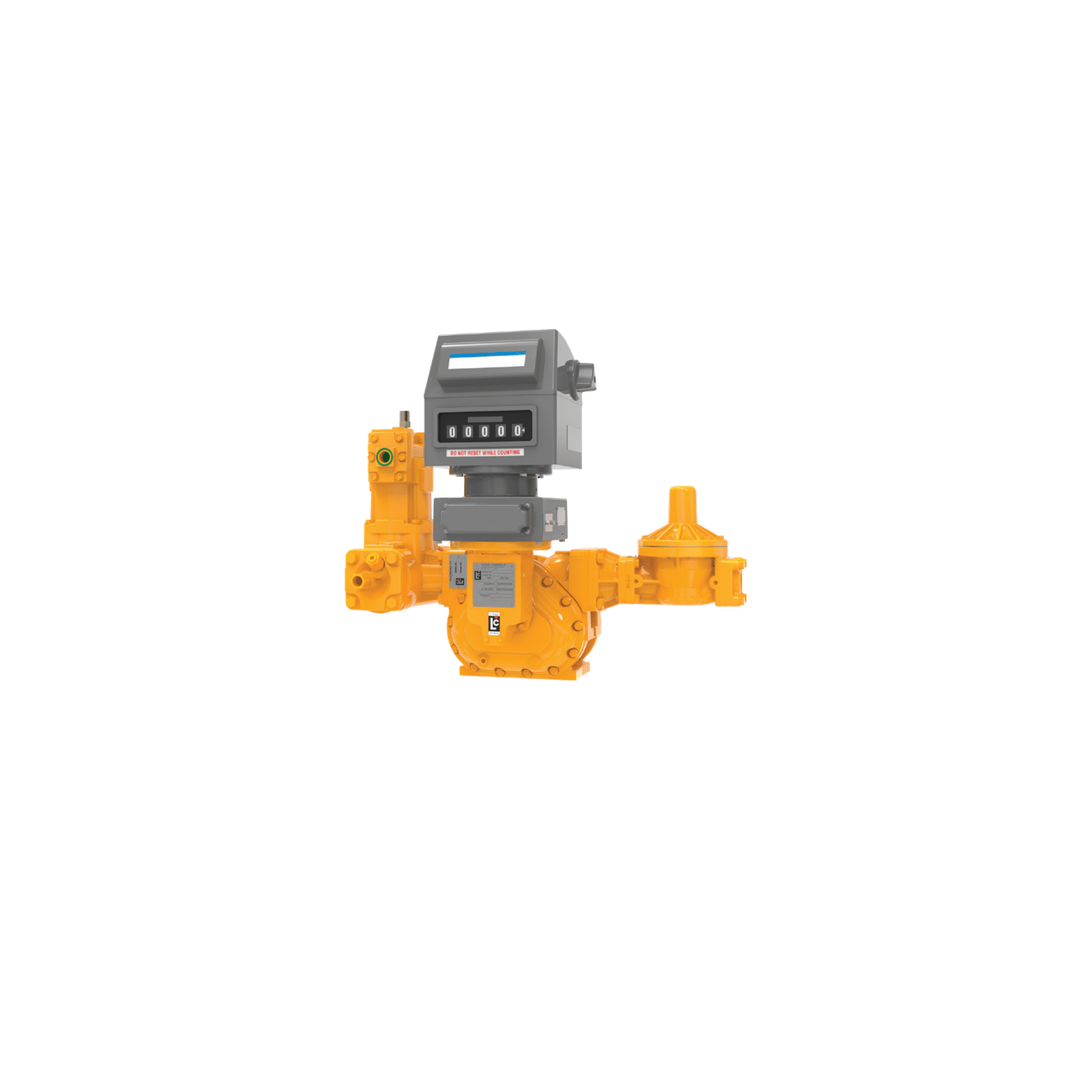

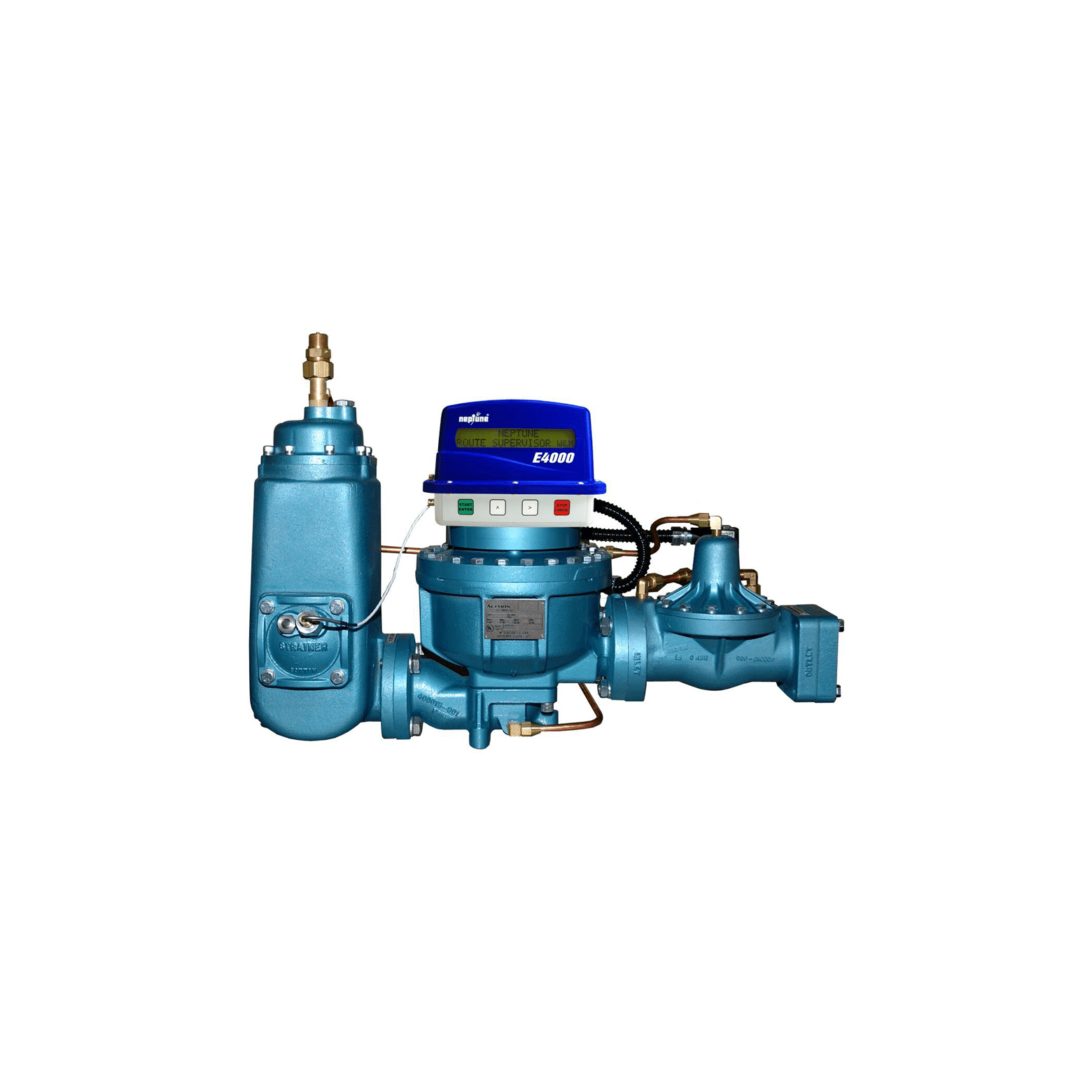

Positive displacement meters

  • Low pressure drop
  • Sustained and reliable accuracy
  • Wide temperature and viscosity range
  • High adaptability
  • Easy installation and maintenance
  • Integrated systems
  • Electronic register

Positive displacement meters, or PD’s, are the single most accurate devices for measuring direct liquid flow in LP custody transfers. PD’s are frequently used for LPG truck metering and stationary plant systems as well as for loading and unloading applications.

All parts are LPG compatible.:
More information can be provided upon request.
Gas types:
LPG (Propane, Butane)
Connections:
Flange, Thread
Type:
ANSI, BSP, DIN, NPT
Pressure range:
10 to 24 bar (150 to 350 psi)
Flow rate:
19 to 3300 lpm (5 to 872 gpm)
Temperature range:
-40˚C to +71˚C (-40˚F to +160˚F)
Sizes and range:
1½" to 6"
Series available:
LC Series M and MA, Neptune type 4D and Neptune type 4D-MT
Standards:
CE-ATEX, CE-PED, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

All parts are LPG compatible.:
More information can be provided upon request.
Gas types:
LPG (Propane, Butane)
Connections:
Flange, Thread
Type:
ANSI, BSP, DIN, NPT
Pressure range:
10 to 24 bar (150 to 350 psi)
Flow rate:
19 to 3300 lpm (5 to 872 gpm)
Temperature range:
-40˚C to +71˚C (-40˚F to +160˚F)
Sizes and range:
1½" to 6"
Series available:
LC Series M and MA, Neptune type 4D and Neptune type 4D-MT
Standards:
CE-ATEX, CE-PED, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

MAKEEN Gas Equipment can provide a complete package of metering systems that can include an automated pre-set delivery (batching system)

Meters are available with a selection of bolt-on strainers and air/vapor eliminators for inlet side and a selection of manual or solenoid actuated differential pressure control valves for the meter outlet

Mechanical and electronic registration equipment and printers are available
