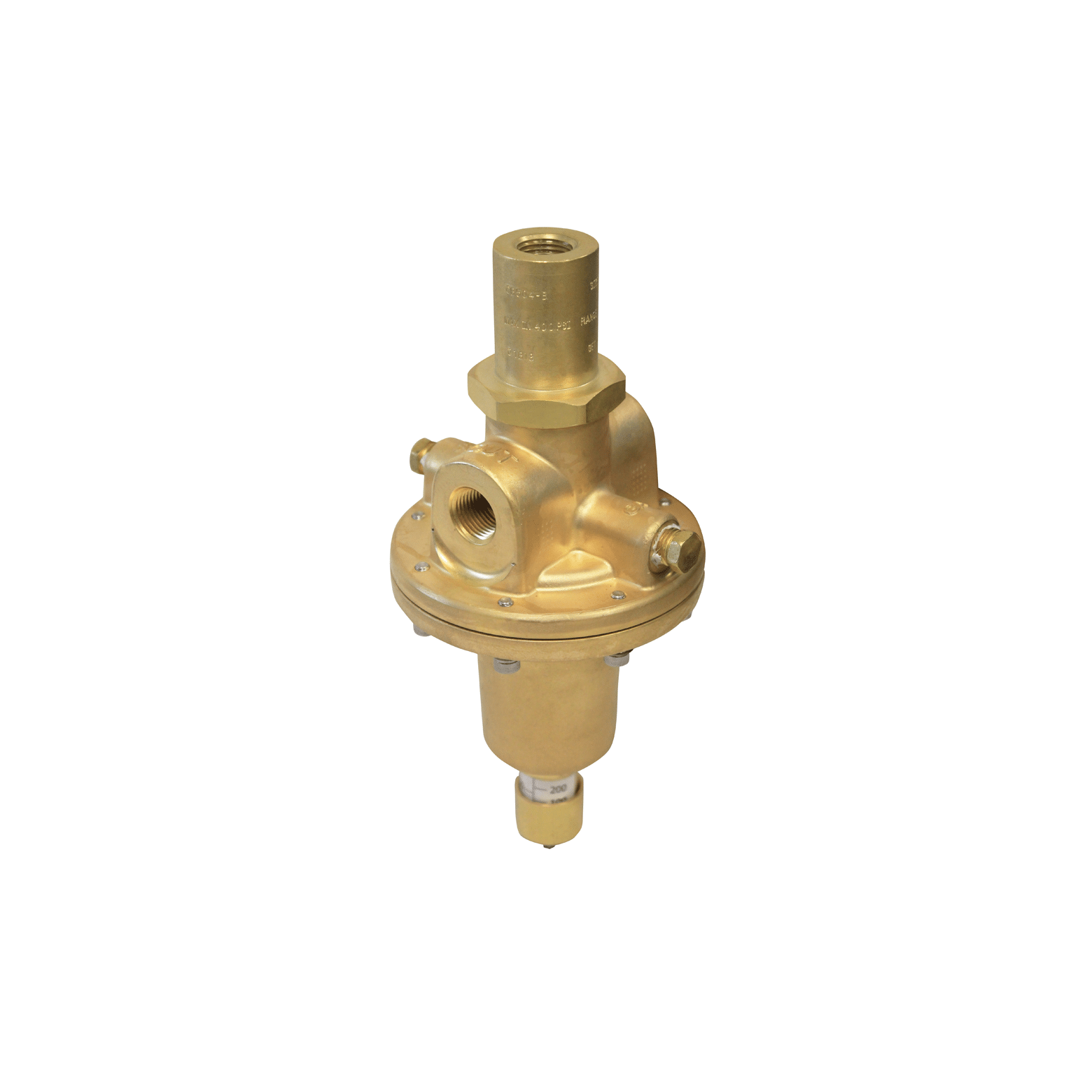

Pressure builders (PB series)

  • Two 1/4” FNPT delivery pressure gauge ports are located (plugged) on each side of the valve
  • Large seat and diaphragm areas provide high capacity with sensitive control of delivery pressure with low falloff
  • T-handle adjusting screw
  • Two bonnet drain/vent holes to allow for different mounting orientation
  • Cleaned for oxygen service per CGA G-4.1
  • 100% Factory tested

High precision of pressure control and flow capability is beneficial for applications with specific requirements. Removing liquid from the bottom of a tank and passing it through a coil is how the regulators build pressure.

Body:
Brass
Spring:
Seamless steel
Bonnet:
Brass
Diaphragm:
Bronze
Diaphragm gasket:
PTFE
Seat:
PTFE
Back-cap seal:
PTFE
Gas types:
Argon, CO2, NG (Natural Gas), Nitrogen, Oxygen
Connections:
Thread
Types:
NPT
Inlet:
Max. 34 bar (500 psi)
Outlet:
1.4 to 37.9 bar (20 to 550 psi)
Temperature range:
-40˚C to +74˚C (-40˚F to +165˚F)
Sizes and range:
½"
Series available:
CR, PB 504
Standards:
ASME, CRN, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Body:
Brass
Spring:
Seamless steel
Bonnet:
Brass
Diaphragm:
Bronze
Diaphragm gasket:
PTFE
Seat:
PTFE
Back-cap seal:
PTFE
Gas types:
Argon, CO2, NG (Natural Gas), Nitrogen, Oxygen
Connections:
Thread
Types:
NPT
Inlet:
Max. 34 bar (500 psi)
Outlet:
1.4 to 37.9 bar (20 to 550 psi)
Temperature range:
-40˚C to +74˚C (-40˚F to +165˚F)
Sizes and range:
½"
Series available:
CR, PB 504
Standards:
ASME, CRN, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

Also suitable for liquid applications LOX, LN2, LAR, LNG and LC02.

They can be used as line regulators for cryogenic lines and cold gas lines.
