MAKEEN Gas Equipment

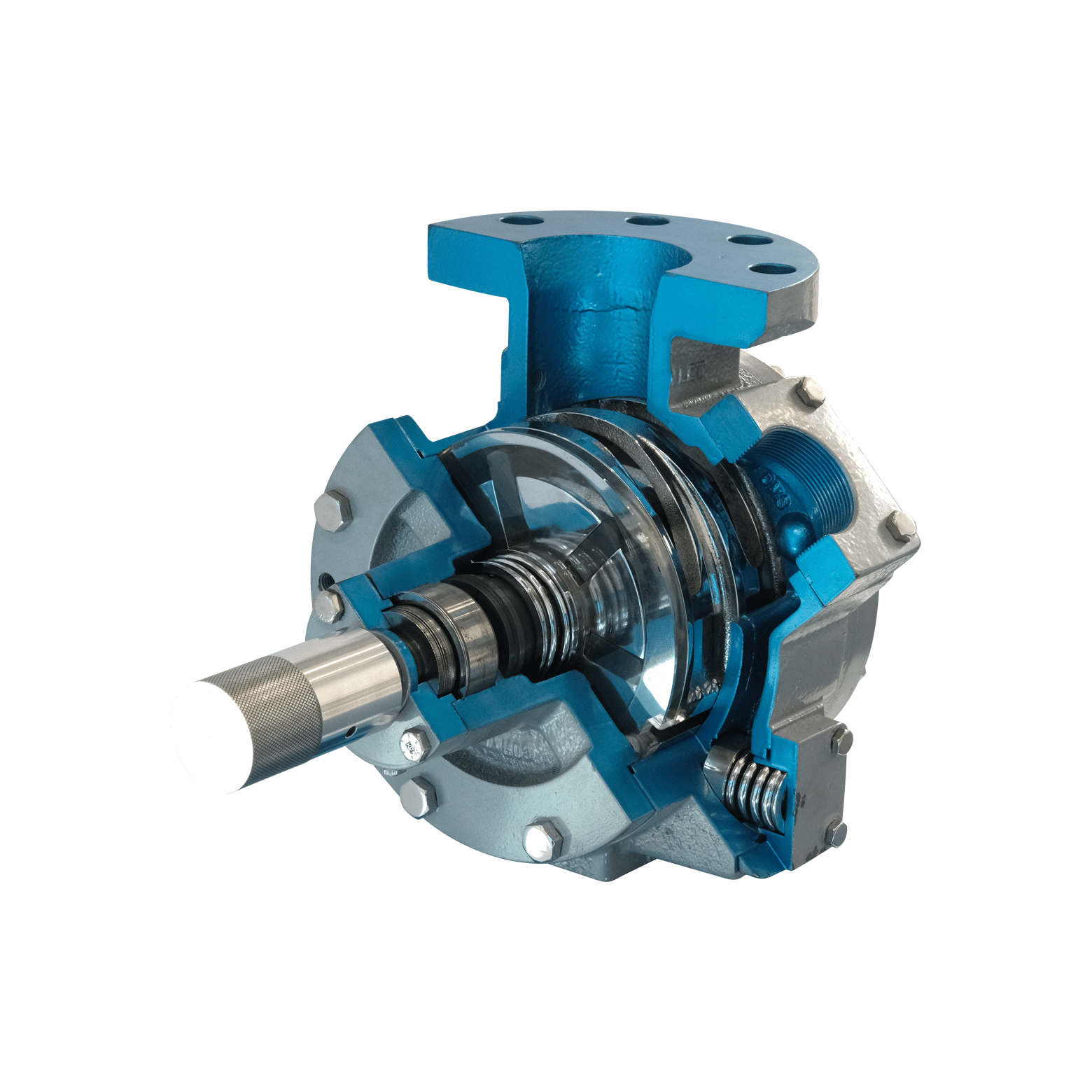

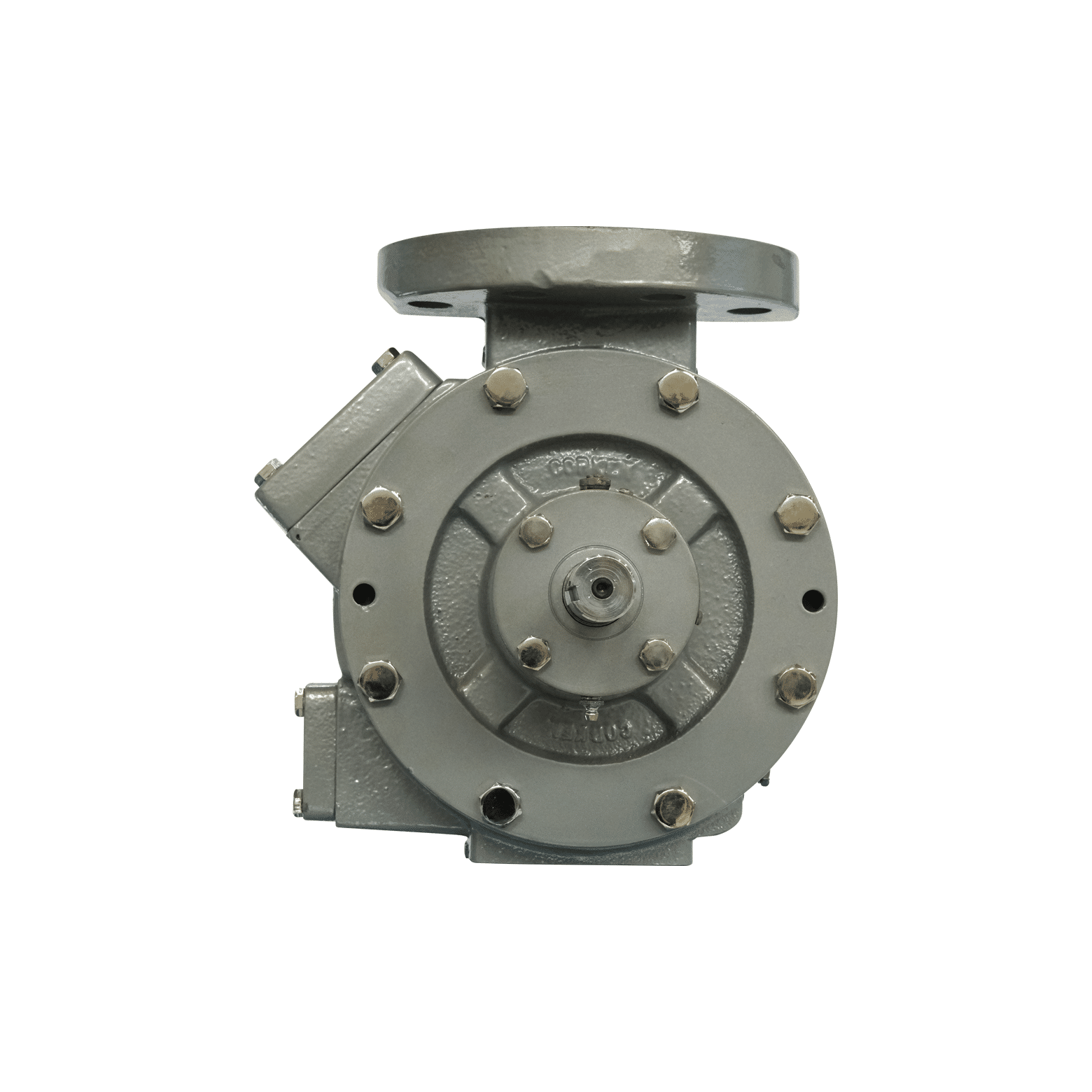

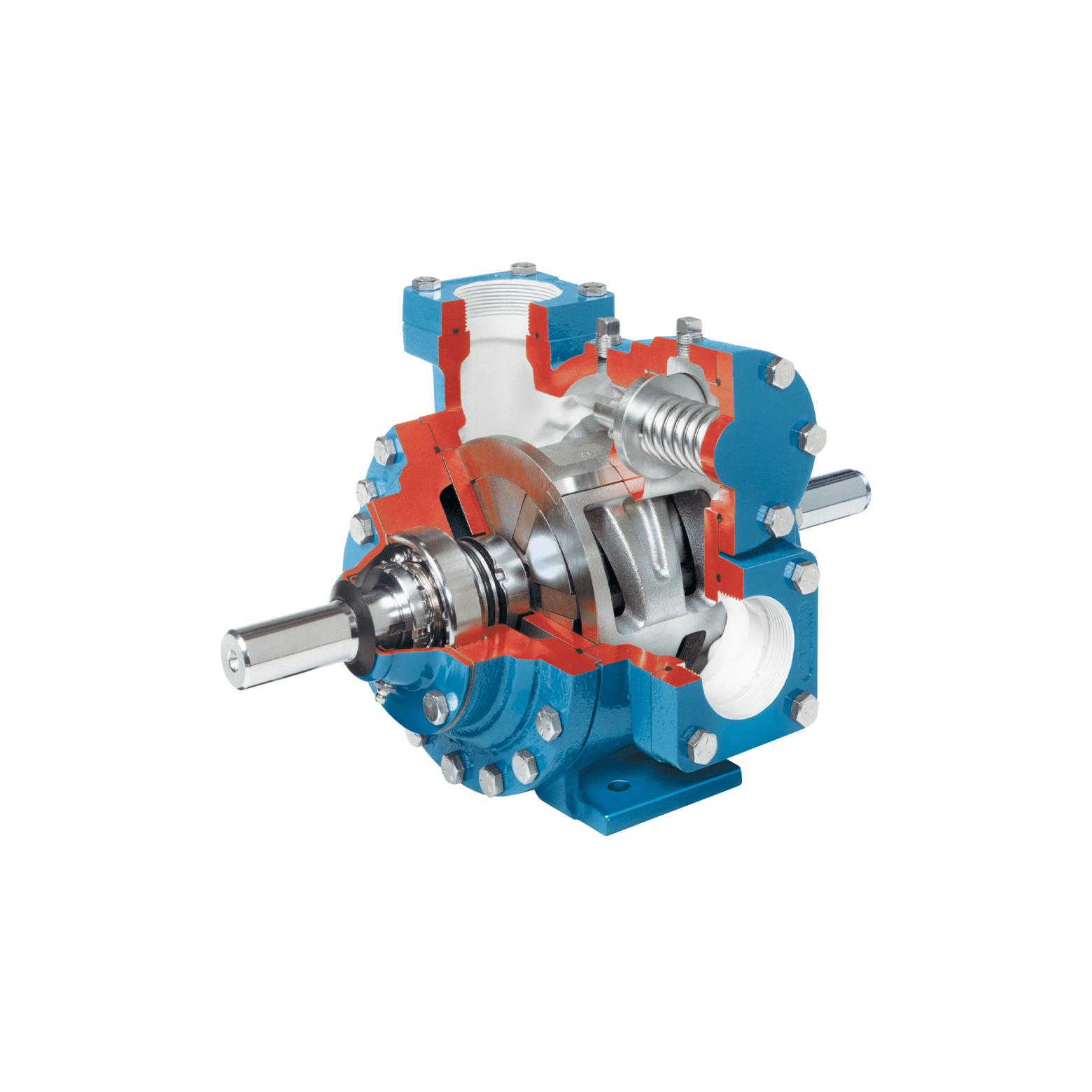

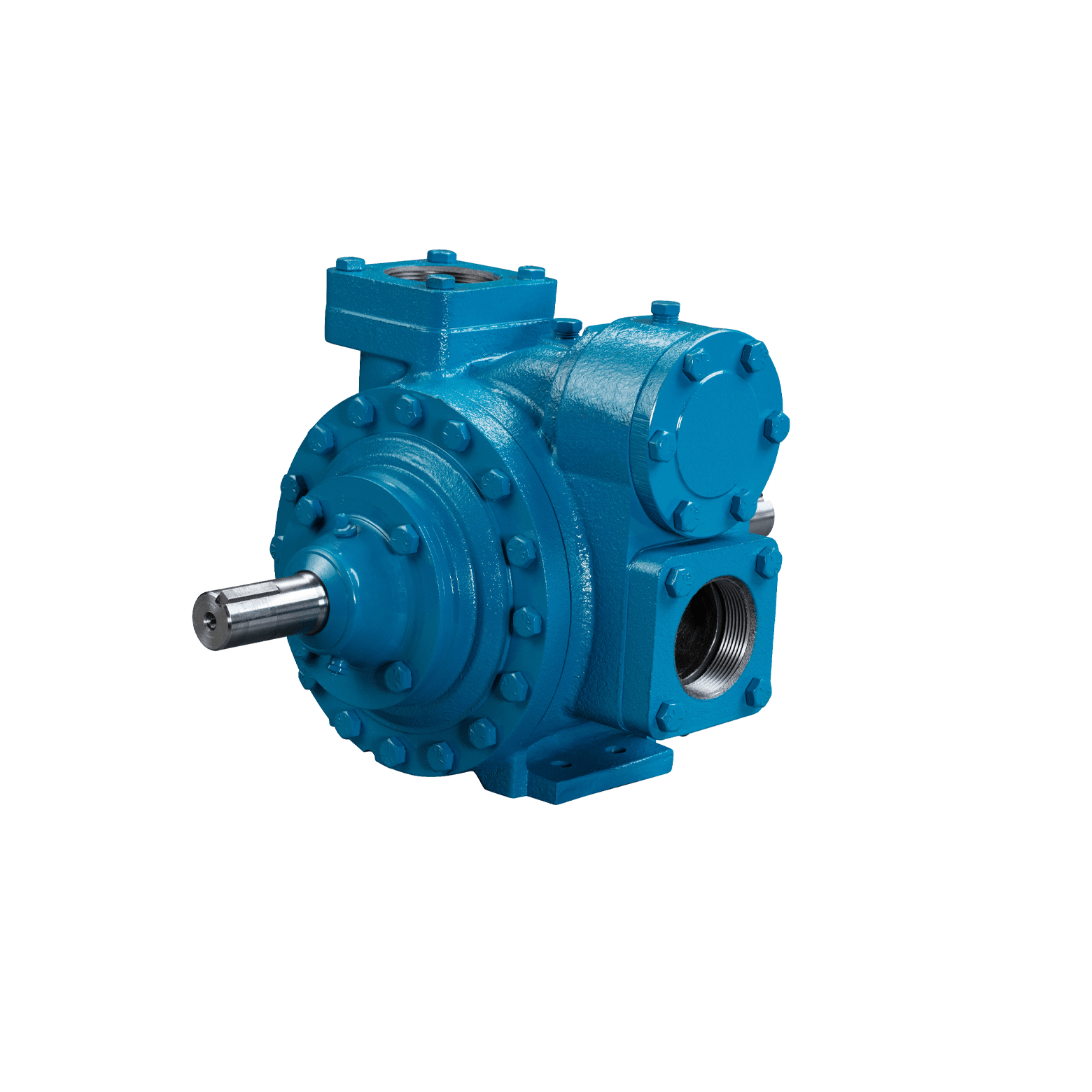

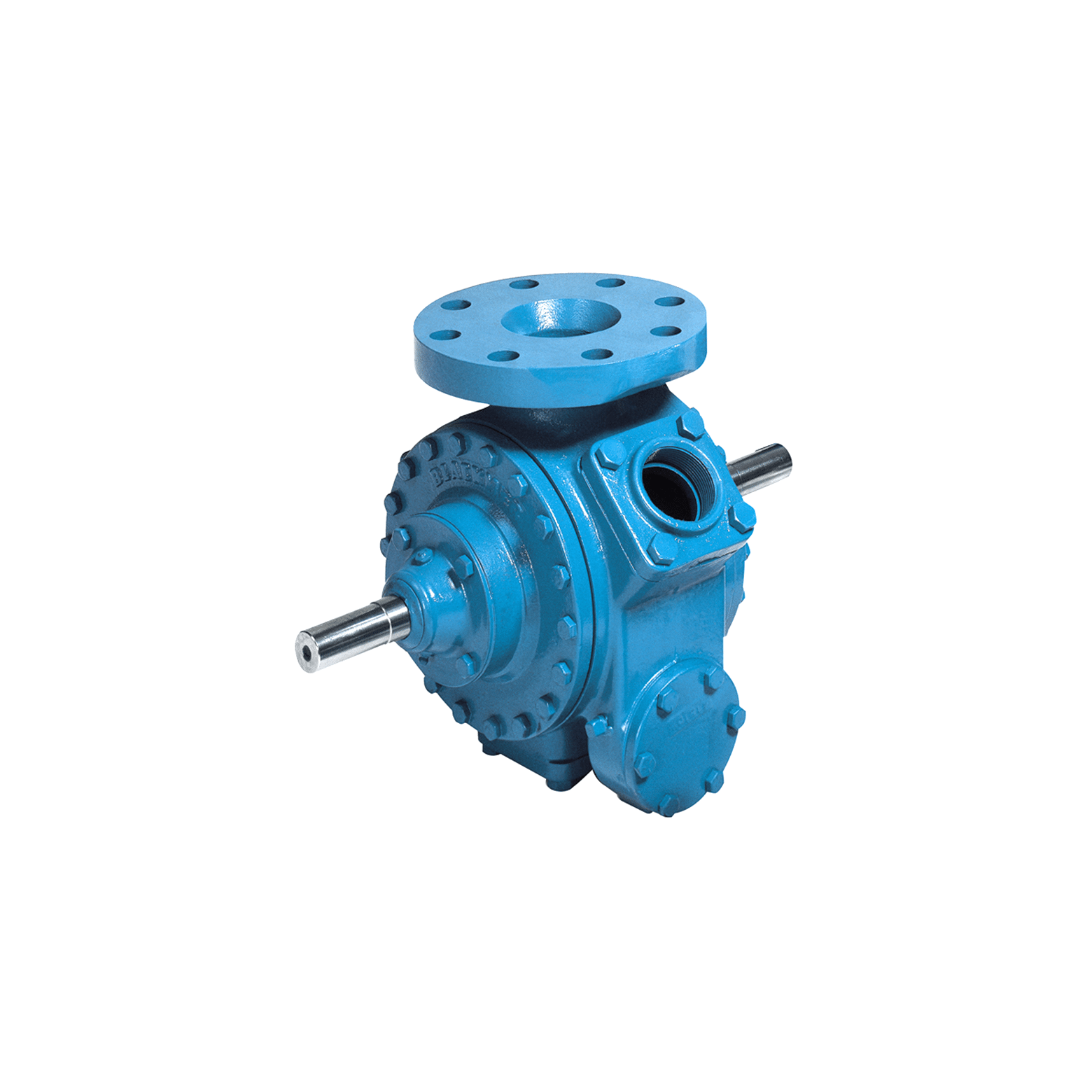

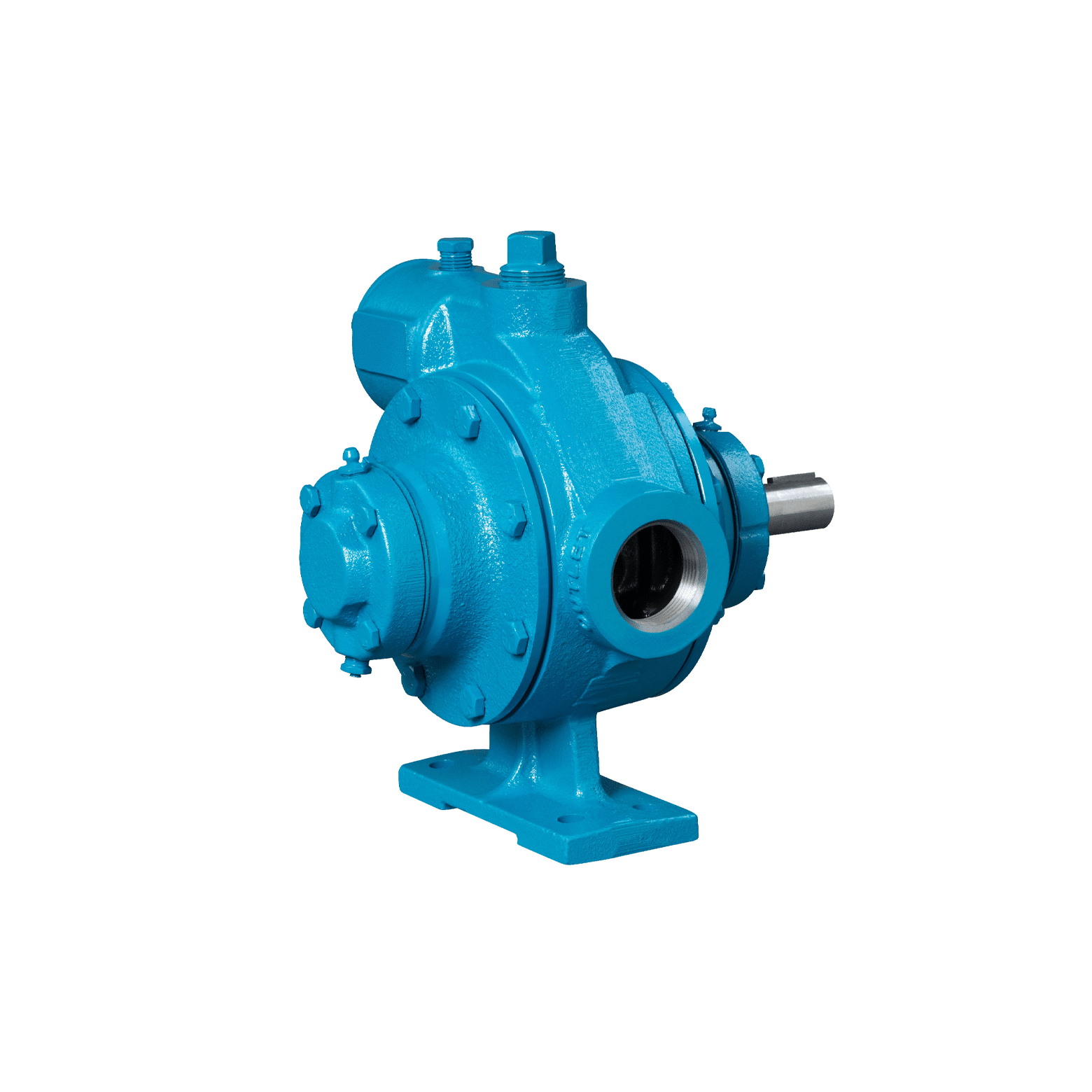

Rotary vane pumps

  • Original ten blade design with no blade drivers
  • Mechanical seal and ball bearing for ultimate reliability
  • O-ring construction throughout the pump and no gaskets
  • Non-adjustable factory pre-set internal relief-valve
  • Foot mounted, single shaft design only for stationary applications
  • Noise and vibrations reducing cavitation suppression design liner
  • Easy to maintain with low life-cycle costs
  • Durable and trouble-free performance
  • Long life
  • Even loading assurance by symmetrical bearing support
  • Self-priming and dry-run capable
  • High suction lift and line stripping

Rotary vane pumps, also known as “sliding vane pumps” are designed for transferring propane/butane and other liquids at a constant flow and are commonly used for bobtail and transport trucks, bulk plants, high capacity LPG fueling and vaporizer feeding.

Pump casing and heads:
Ductile iron
Cam and side plates:
Grey iron
Rotor & flanges:
Ductile iron
Seal seat:
Silicone carbide
O-rings:
Buna-N
Blades:
Advanced polymers
Gas types:
CO2, LPG (Propane, Butane), Natural Gas Liquids, NH3 (Ammonia, Anhydrous Ammonia), Refrigerants
Connections:
Flange, Thread, Weld
Type:
ANSI #300, Neck, NPT
Pressure range:
Max. 24.1 bar (350 psi)
Flow rate:
Up to 1,475 lpm (385 gpm)
Temperature range:
-32˚C to +115˚C (-25˚F to +240˚F)
Diff. pressure:
Max. 13.1 bar (190 psi)
Sizes and range:
1" to 4" (NPT), 1½" to 4" (weld), 3" to 4" (ANSI)
Series available:
1021, 521, LG1, LGL1.25, LGL1.5, LGL3021, LGLD2, LGLD3, LGLD4, LGLH2, TLGLF3, TLGLF4, Z2000, Z3200, Z3500, Z4200, Z4500
Standards:
ATEX, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Pump casing and heads:
Ductile iron
Cam and side plates:
Grey iron
Rotor & flanges:
Ductile iron
Seal seat:
Silicone carbide
O-rings:
Buna-N
Blades:
Advanced polymers
Gas types:
CO2, LPG (Propane, Butane), Natural Gas Liquids, NH3 (Ammonia, Anhydrous Ammonia), Refrigerants
Connections:
Flange, Thread, Weld
Type:
ANSI #300, Neck, NPT
Pressure range:
Max. 24.1 bar (350 psi)
Flow rate:
Up to 1,475 lpm (385 gpm)
Temperature range:
-32˚C to +115˚C (-25˚F to +240˚F)
Diff. pressure:
Max. 13.1 bar (190 psi)
Sizes and range:
1" to 4" (NPT), 1½" to 4" (weld), 3" to 4" (ANSI)
Series available:
1021, 521, LG1, LGL1.25, LGL1.5, LGL3021, LGLD2, LGLD3, LGLD4, LGLH2, TLGLF3, TLGLF4, Z2000, Z3200, Z3500, Z4200, Z4500
Standards:
ATEX, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

MAKEEN Gas Equipment can provide a complete pump skid, fully assembled with motor, coupling, guard and baseplate

Some models have double-ended drive shaft arrangement, popular for bobtail service
