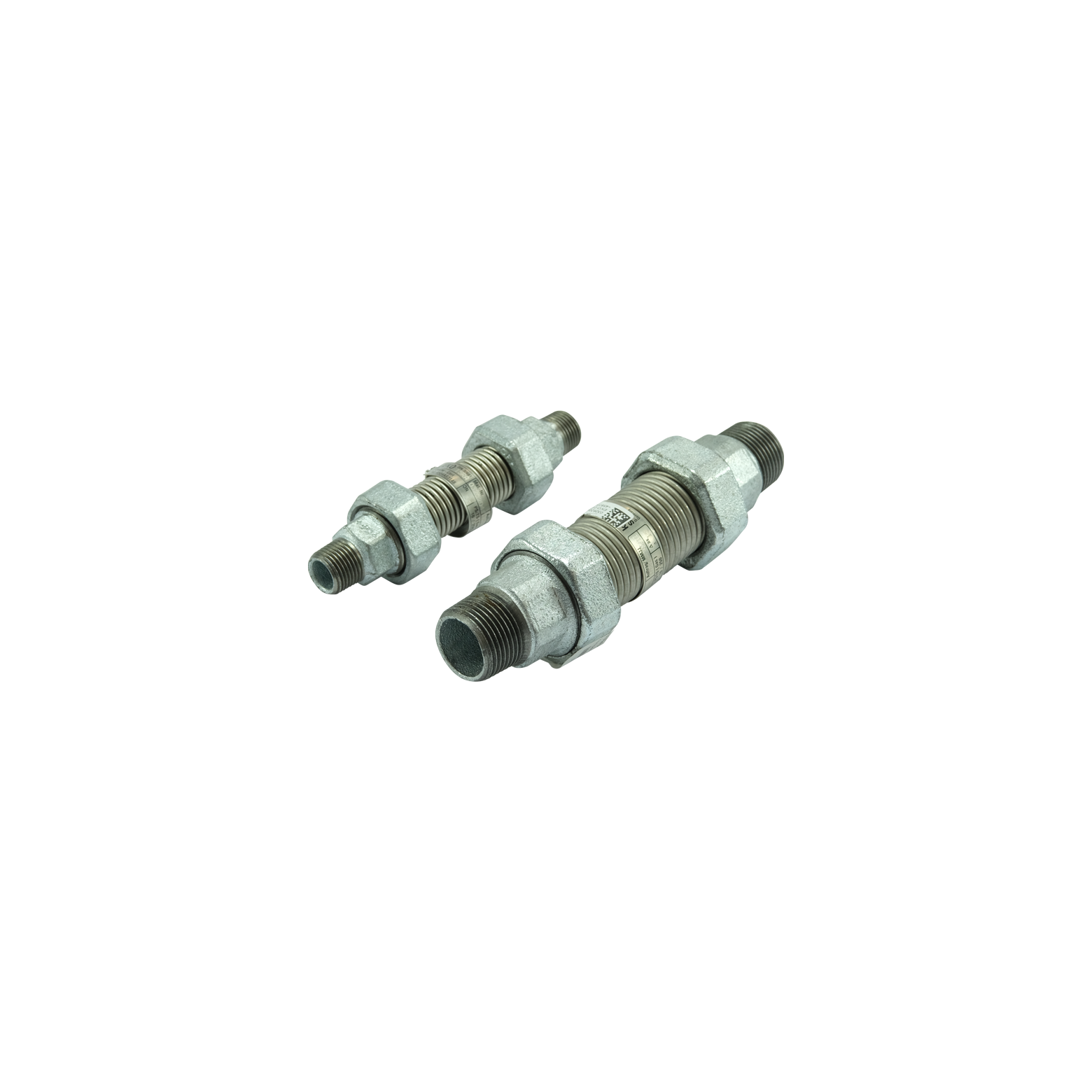

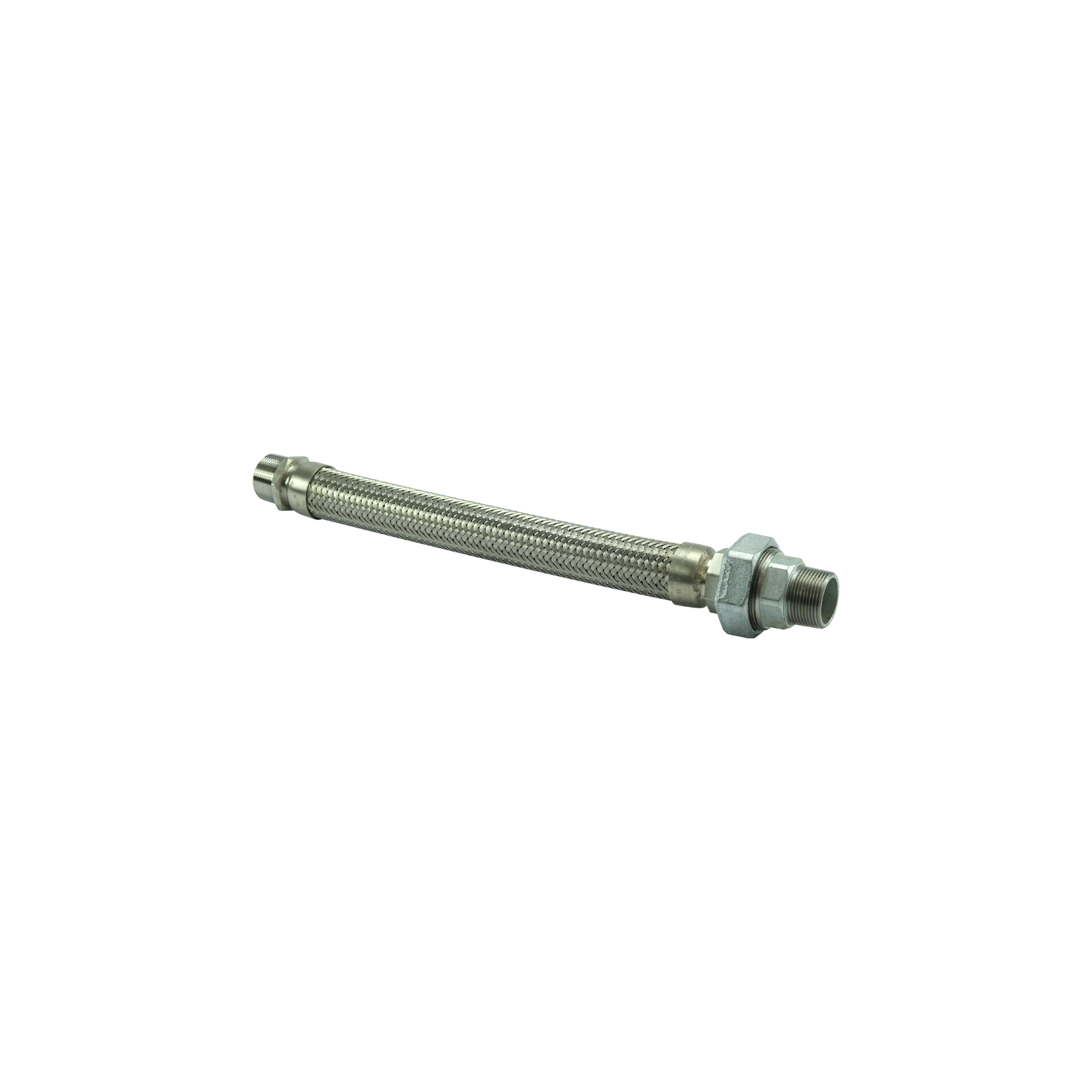

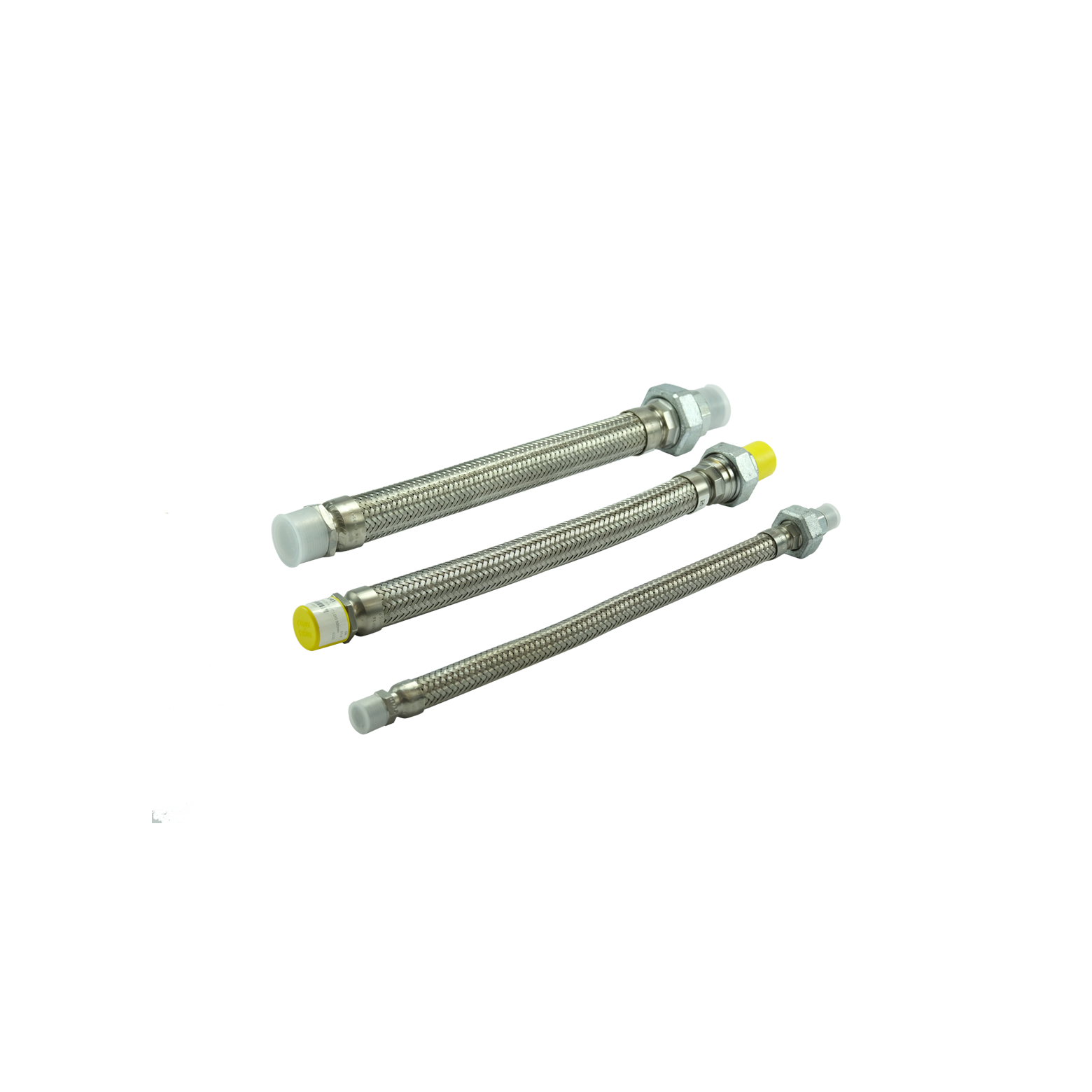

Stainless steel flex hoses

  • Angular and lateral movement absorbing
  • High physical strength – pressure resistant
  • Fire and corrosion resistant
  • Simple installation
  • Delivery according to PED up to category II

Stainless steel flex tubes or hoses are flexible and reliable pipework and assembly connectors with high pressure bearing capabilities, making them well suited for LPG and NH3 installations that are either static or where only slight movement occurs.

Tube:
Stainless steel corrugated (1.45451)
Colour:
Metal
Hose:
Stainless steel (AISI316L)
Braid:
Stainless steel sheathing (AISI-304.4301)
Gas types:
Biogas, BioLPG, CNG, CO2, Cryogenics, Hydrogen, Industrial gases, LNG (Liquefied Natural Gas), LPG (Propane, Butane), NG (Natural Gas), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread
Type:
ANSI, BSP, DIN, G, NPT
Sizes and range:
10 to 150 (ANSI/DIN) and ¼" to 6" (others)
Pressure range:
Max. 128 bar (1856 psi)
Temperature range:
-260° C to +600° C (-436° F to +1112° F)
Series available:
ES
Standards:
CE-PED, DVGW, EAC, EC, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Tube:
Stainless steel corrugated (1.45451)
Colour:
Metal
Hose:
Stainless steel (AISI316L)
Braid:
Stainless steel sheathing (AISI-304.4301)
Gas types:
Biogas, BioLPG, CNG, CO2, Cryogenics, Hydrogen, Industrial gases, LNG (Liquefied Natural Gas), LPG (Propane, Butane), NG (Natural Gas), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread
Type:
ANSI, BSP, DIN, G, NPT
Sizes and range:
10 to 150 (ANSI/DIN) and ¼" to 6" (others)
Pressure range:
Max. 128 bar (1856 psi)
Temperature range:
-260° C to +600° C (-436° F to +1112° F)
Series available:
ES
Standards:
CE-PED, DVGW, EAC, EC, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

The tubes/-hoses are suitable for use in full vacuum.

ProSupply can provide many length, connection and dual-end union configurations to meet individual system requirements.
