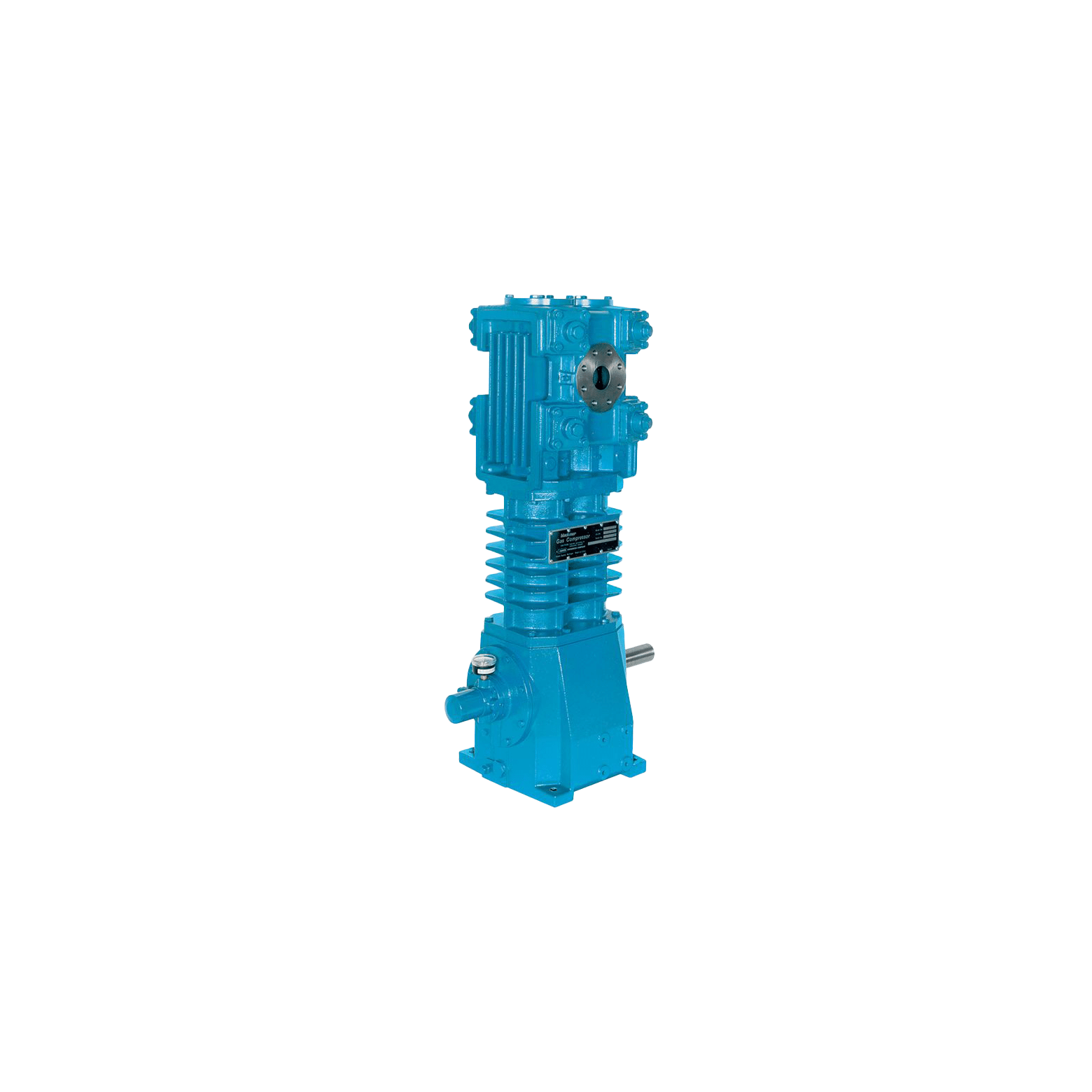

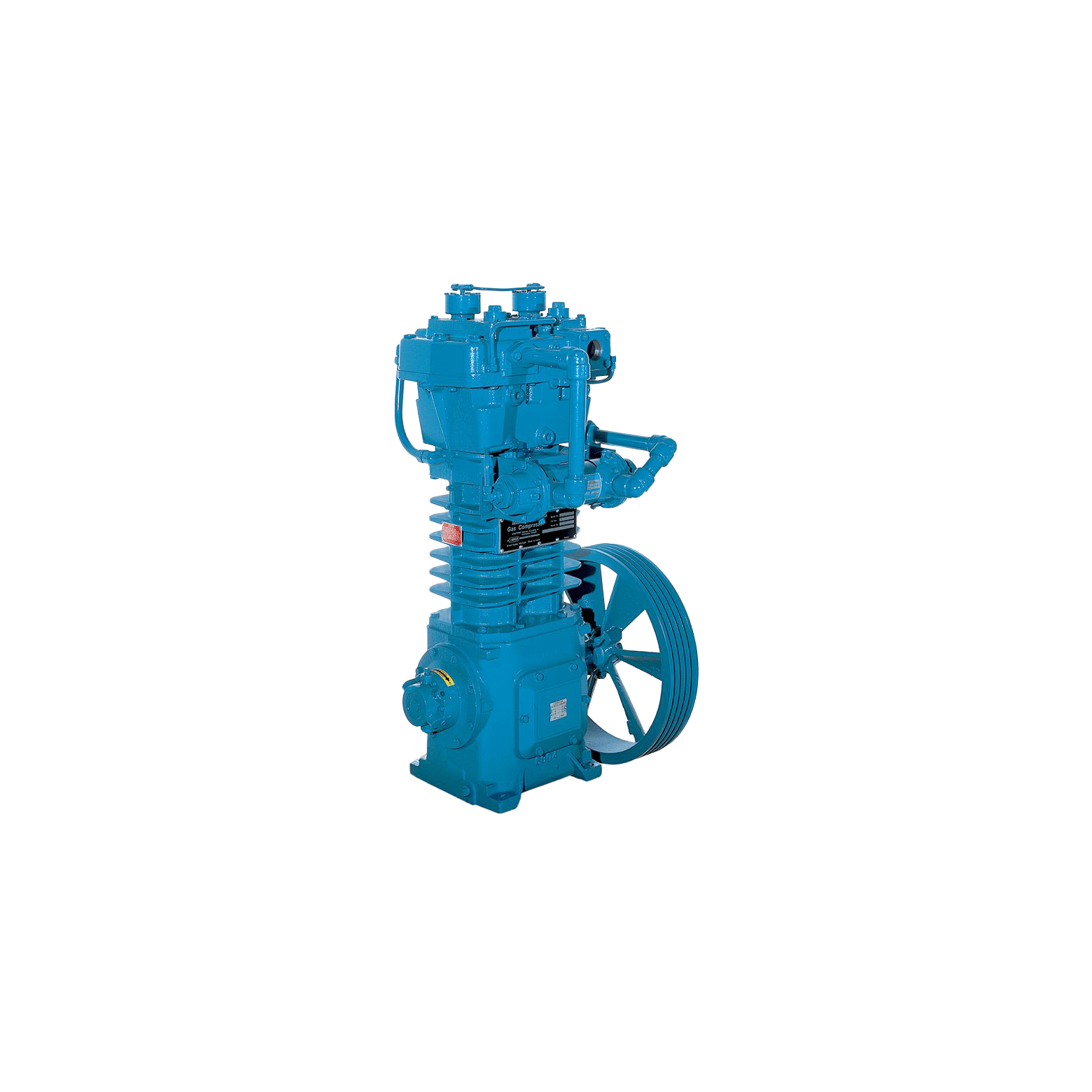

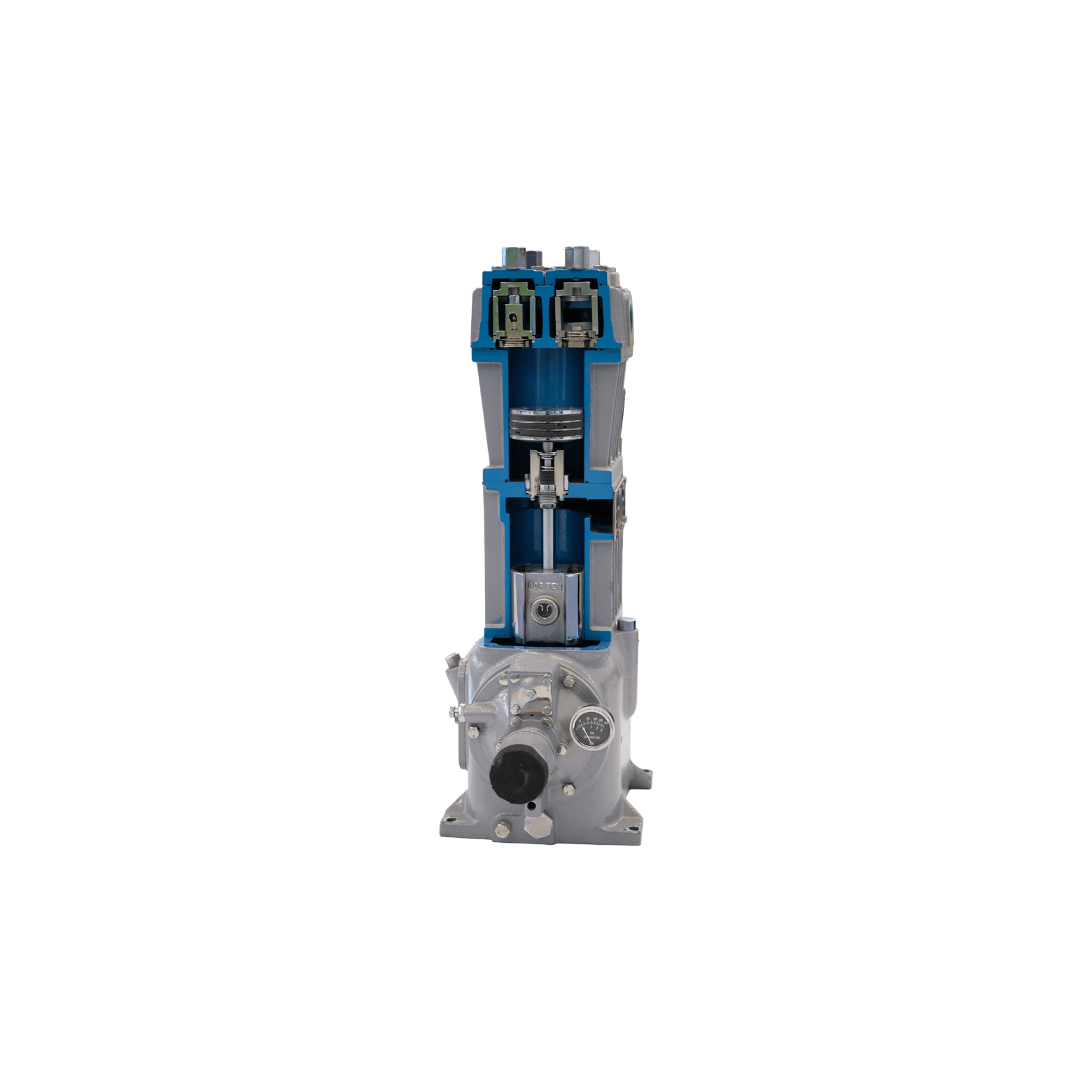

Vertical compressors

  • High-efficiency valves moving larger volumes of gas
  • Positive self-adjusting seals and seating
  • Mechanical and thermal shock resistance
  • Heavy-duty crank shaft
  • Wear resistant crosshead assemblies

Vertical compressors are designed for liquid tank-to-tank transfers with minimal residue due to the vapour recovery functionality. They are frequently used for rail car loading and unloading, liquefied gas transfers, pressure boosting and vapour recovery.

Body:
Ductile iron
Seals:
PTFE
Gas types:
LPG (Propane, Butane), NG (Natural Gas), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread, Weld
Type:
ANSI #300, flanged, NPT, welded
Pressure range:
Max. 31 bar (450 psi)
Flow rate:
Up to 212 m3/h (125 cfm)
Brake horsepower:
37 kW (50 HP)
Temperature range:
+177˚C (350˚F)
Sizes and range:
2" (weld), 3/4" to 2" (NPT and ANSI)
Series available:
291, 491, 691, 891, 91 s, LB080, LB360, LB600, LB940
Standards:
CE-ATEX, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Body:
Ductile iron
Seals:
PTFE
Gas types:
LPG (Propane, Butane), NG (Natural Gas), NH3 (Ammonia, Anhydrous Ammonia)
Connections:
Flange, Thread, Weld
Type:
ANSI #300, flanged, NPT, welded
Pressure range:
Max. 31 bar (450 psi)
Flow rate:
Up to 212 m3/h (125 cfm)
Brake horsepower:
37 kW (50 HP)
Temperature range:
+177˚C (350˚F)
Sizes and range:
2" (weld), 3/4" to 2" (NPT and ANSI)
Series available:
291, 491, 691, 891, 91 s, LB080, LB360, LB600, LB940
Standards:
CE-ATEX, UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Alternative products

No related products were found.

Did you know?

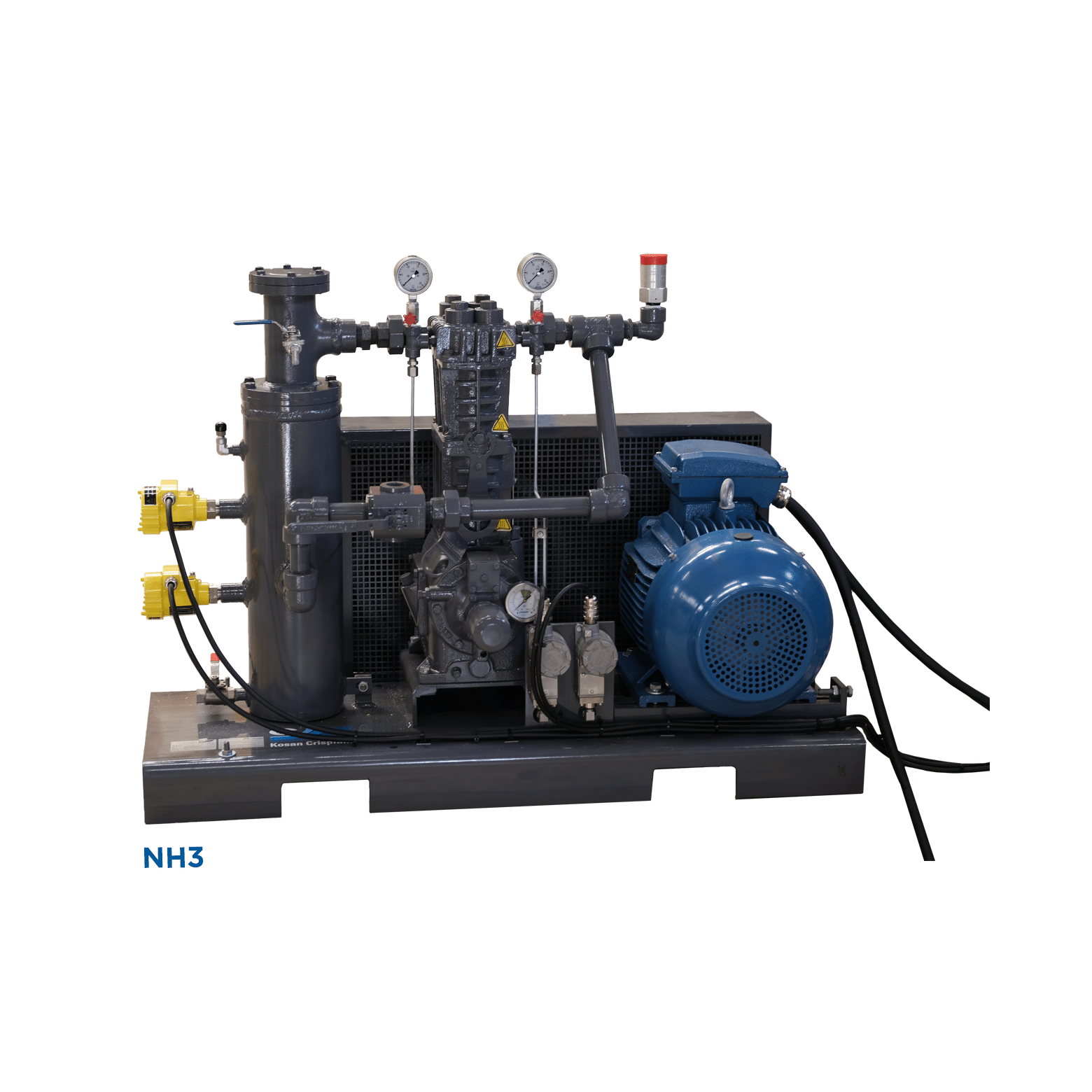

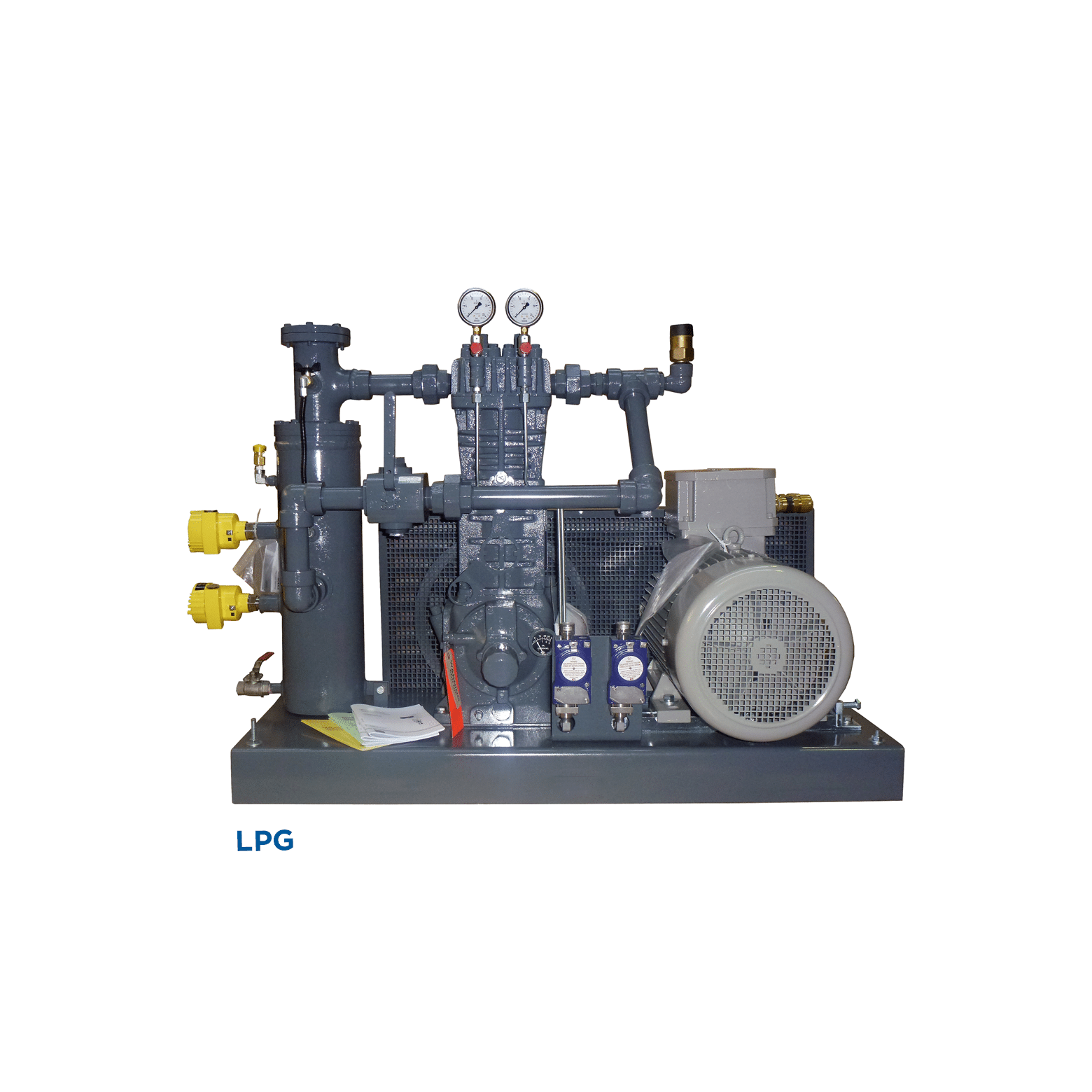

MAKEEN Gas Equipment can provide custom engineered compressor skids, including electric motor, coupling, liquid trap, instrumentation, flexible hoses amongst many other features

Double and triple piston rod seals with distance piece chambers are available
